Electric Vehicle Portable Charger AT-N05V3V3-F 3G1.5 - 1380 / 2300 / 3680W - 6.0 / 8.0 / 10.0 / 13.0 / 16.0A
Regular price
782,00 zł
Unit price
/
Unavailable
Electric Vehicle Portable Charger AT-N05V3V3-F 3G1.5 - 1380 / 2300 / 3680W - 6.0 / 8.0 / 10.0 / 13.0 / 16.0A is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
- Ordered before 8 PM, delivered within 1–2 working days
- Free returns within 30 days
- Pay your way. Upfront or later with Klarna
Wettelijke Garantie
Description
Description
The Nedis Portable EV Charger provides a practical charging solution for electric vehicles and plug-in hybrid vehicles using a standard Schuko power outlet. The Mode 2 charging cable is equipped with a CEE 7/7 plug and supports adjustable charging currents of 6 A, 8 A, 10 A, 13 A and 16 A, allowing the charging current to be matched to the available power supply.

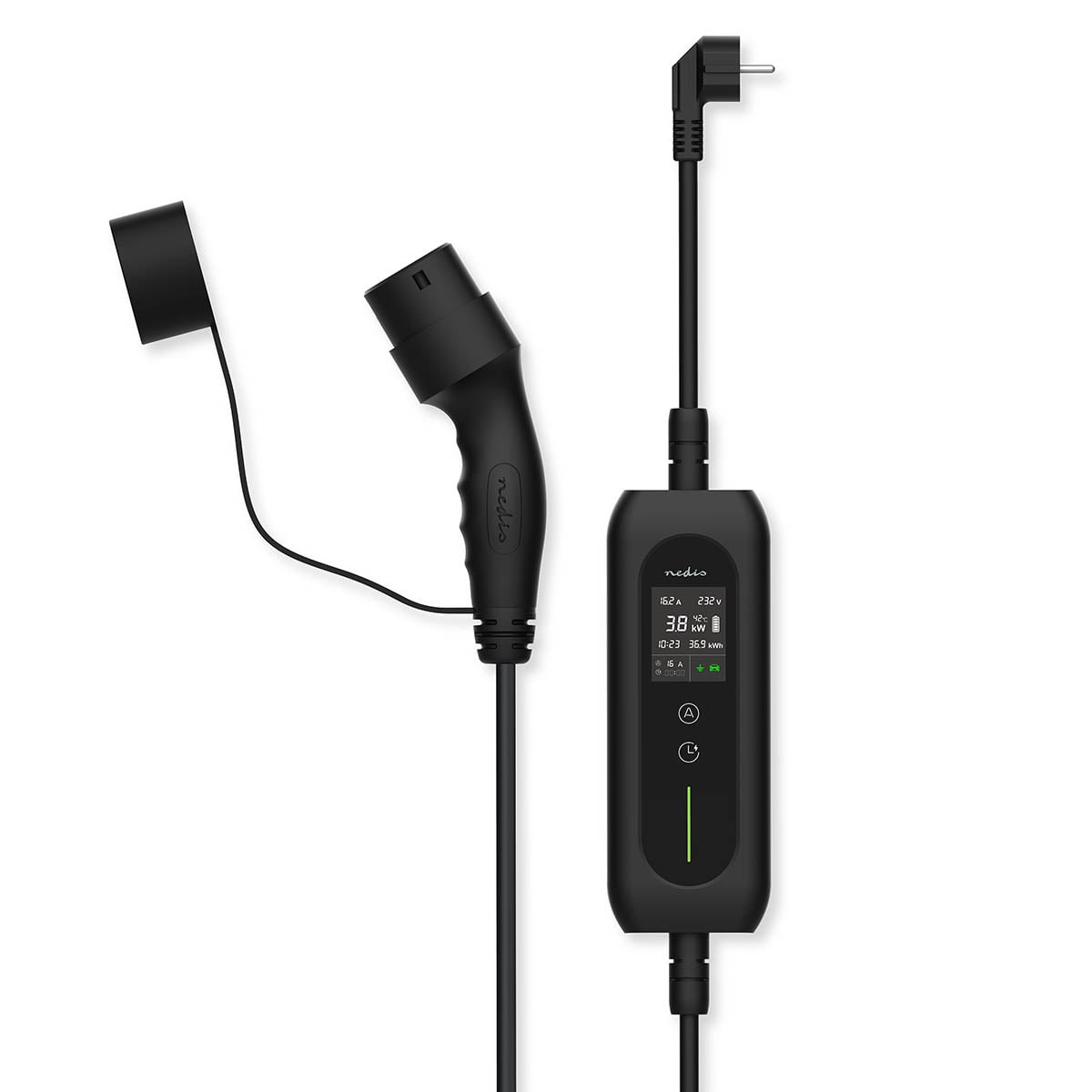

The integrated full-colour display provides clear real-time information about voltage, power, charging status and internal temperature. This makes it easy to monitor the charging process during use.
Designed for regular use, the charging unit features a durable ABS housing and an IP54 rating for protection against dust and water exposure. Rubber protection caps help protect the connectors against dust and moisture when not in use. The charger is designed for more than 10,000 operating cycles, supporting long-term use.
Integrated protection functions include overvoltage, undervoltage, overcurrent and temperature protection, helping to ensure safe and reliable charging. With its portable design and standard Schuko connection, this EV charger is suitable for use at home, while travelling or as an additional charging solution.
The integrated full-colour display provides clear real-time information about voltage, power, charging status and internal temperature. This makes it easy to monitor the charging process during use.
Designed for regular use, the charging unit features a durable ABS housing and an IP54 rating for protection against dust and water exposure. Rubber protection caps help protect the connectors against dust and moisture when not in use. The charger is designed for more than 10,000 operating cycles, supporting long-term use.
Integrated protection functions include overvoltage, undervoltage, overcurrent and temperature protection, helping to ensure safe and reliable charging. With its portable design and standard Schuko connection, this EV charger is suitable for use at home, while travelling or as an additional charging solution.
Specifications
Specifications
-
SKUEVCH371KWBK20
-
EAN/GTIN5412810482009
-
Height66 mm
-
Length98 mm
-
Width5000 mm
-
Weight1980 g
-
Cable mantle materialTPE
-
Cable mantle size10.5mm
-
Cable typeAT-N05V3V3-F 3G1.5
-
Charge protectionOver Current Protection, Over Temperature Protection, Over Voltage Protection, Under Voltage Protection
-
ColourBlack
-
Conductor diameter3 x 2.50 mm²
-
Conductor materialCopper
-
Connector design - side AStraight
-
Connector design - side BStraight
-
Connector materialABS
-
Display typeLCD
-
Flammability standardUL94 V-O
-
Insertion life cycle10000
-
IP ratingIP54
-
Number of phases1 Phase
-
Operating temperature range-25° C ~ 45°C°C
-
Output current8.0A, 13.0A, 16.0A, 6.0A, 10.0A
-
PackagingGift Box
-
Power1380W, 2300W, 3680W
-
Power cable length5.00m
-
Power cable side APlug with earth contact male
-
Power cable side BEN62199-2 Type 2
-
Residual current protectionRCD Type-A+DC6mA
-
Terminal temperature rise223°C
-
Withstand voltage2000V
-
Working humidity5% -95% non condensed%
