HDMI™ Matrix Switch 4 x 2 port(s) - 4x HDMI™ Input - 2x 3.5 mm / 2x HDMI™ Output / 2x TosLink

€124,99

Connect 4 HDMI devices to 2 screens. View different sources independently per TV. Includes audio extractor for separate sound output. Easily control with remote control.

Ordered before 7:30 PM, delivered tomorrow

Kiyoh logo

8.9 score uit 170+ klantbeoordelingen!

Free shipping from €30

Description

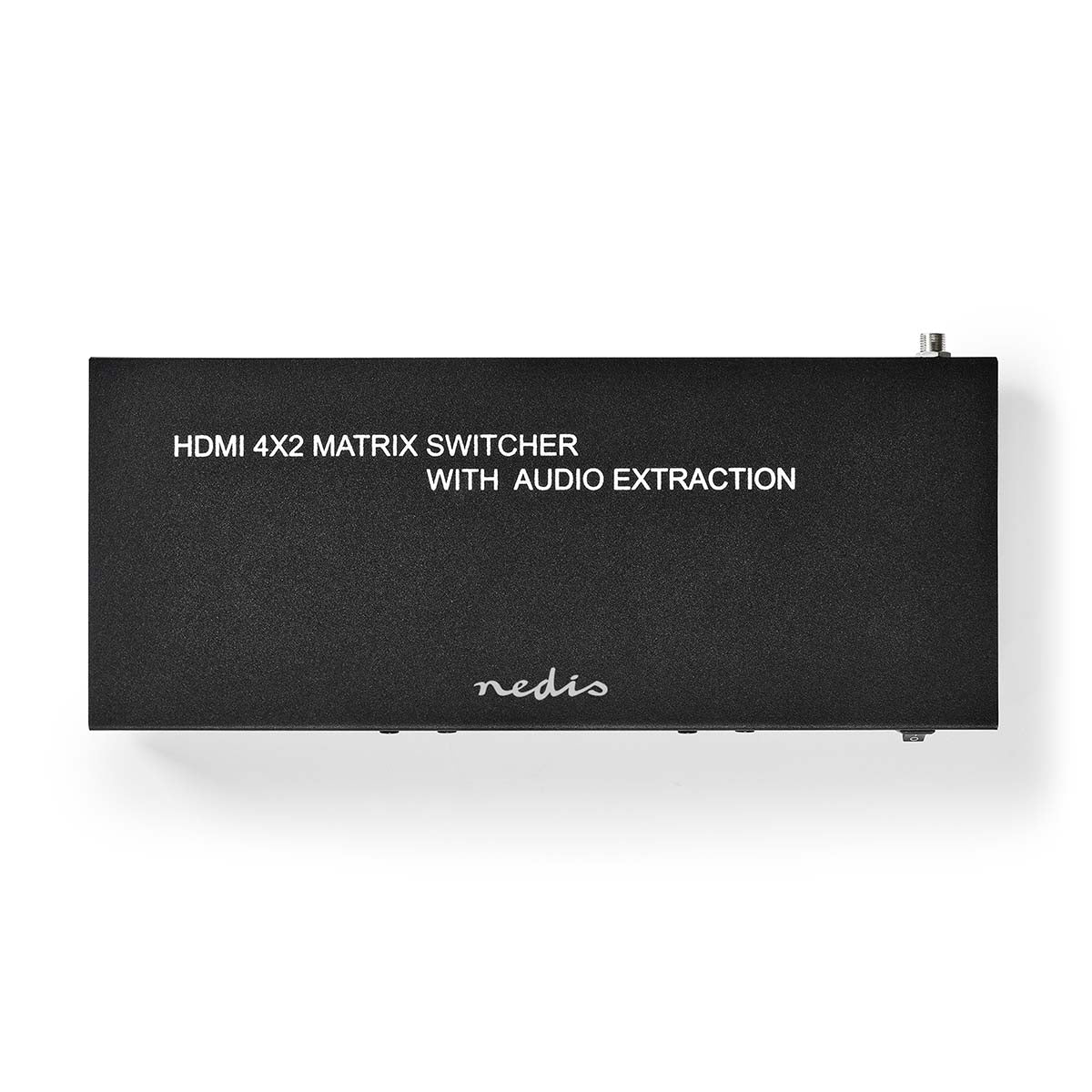

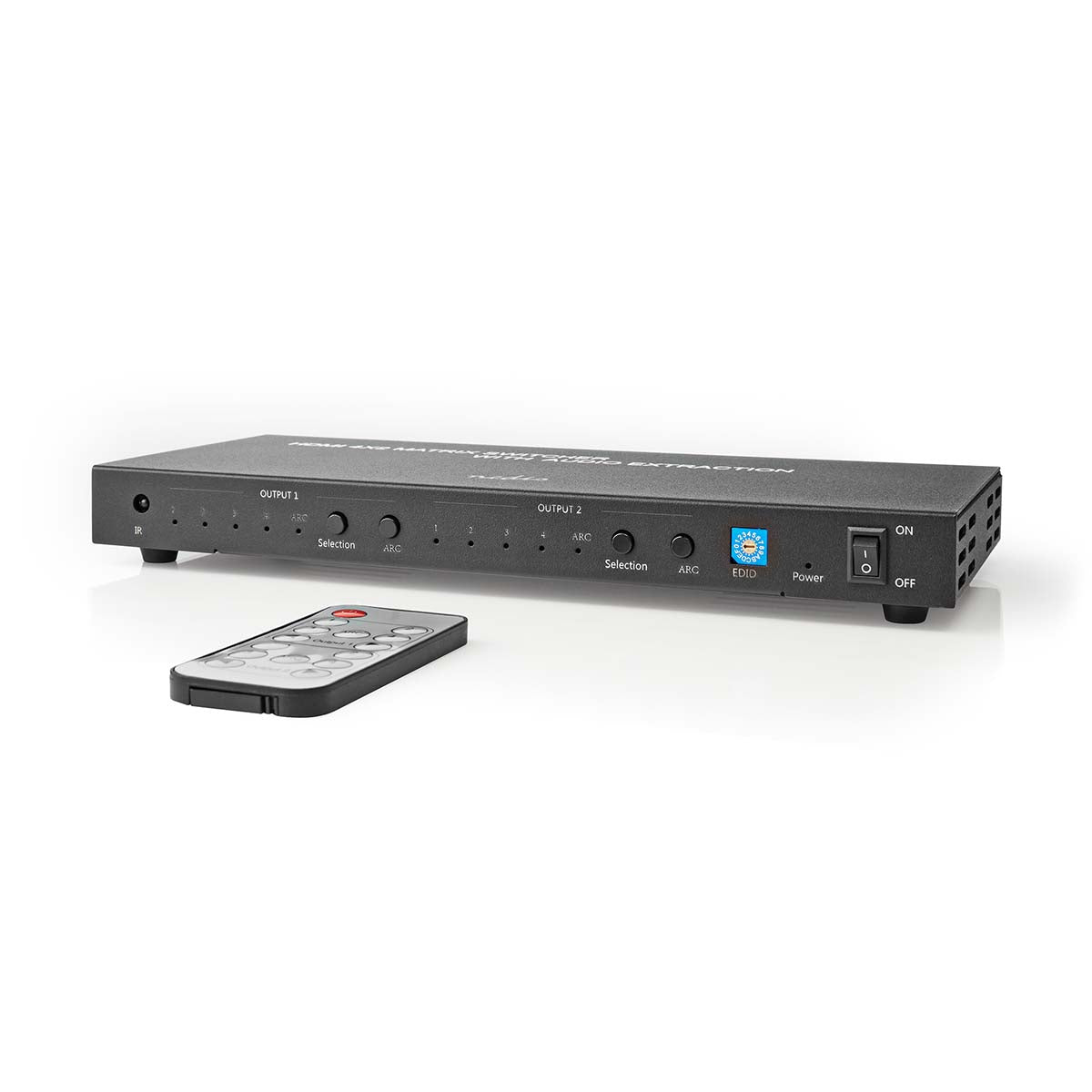

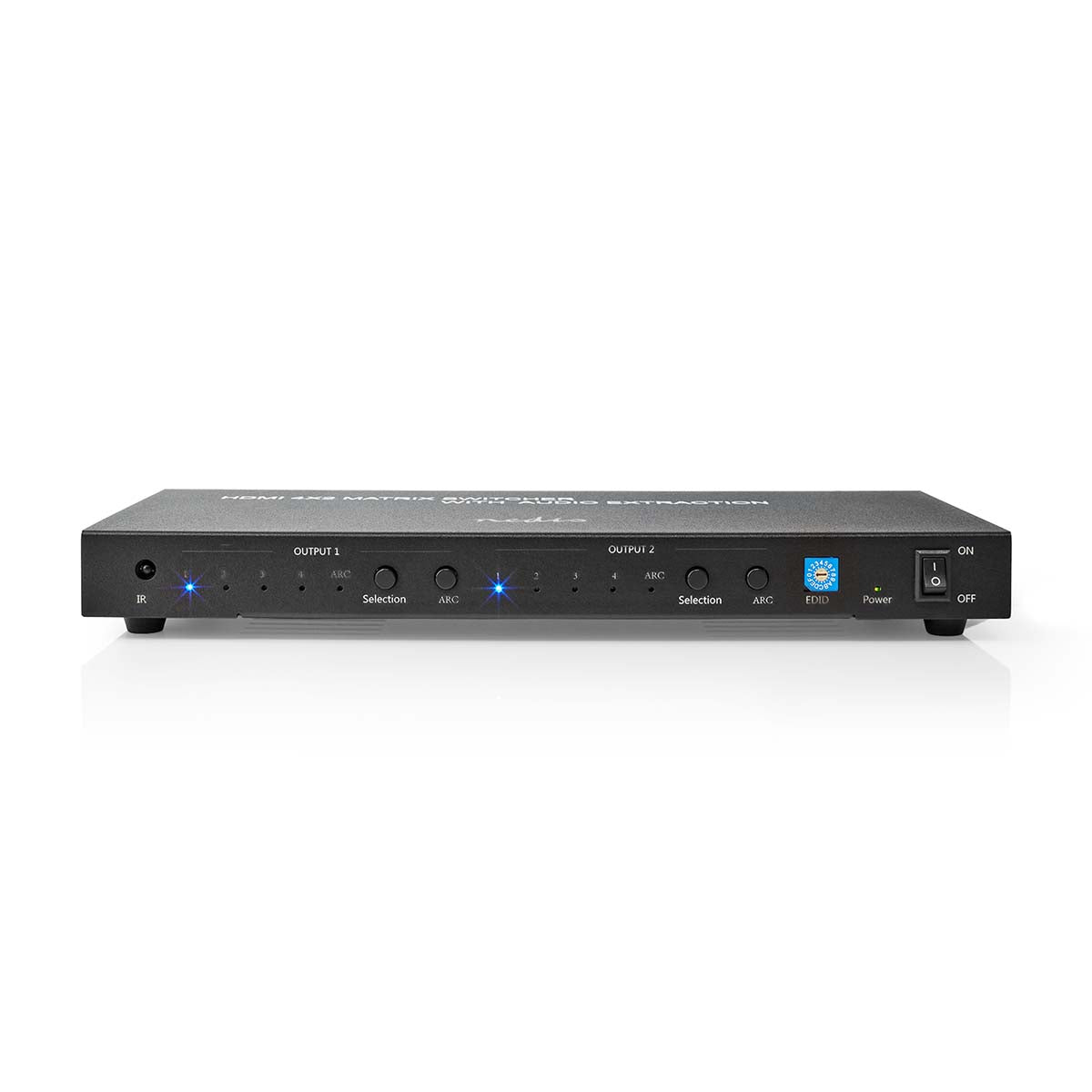

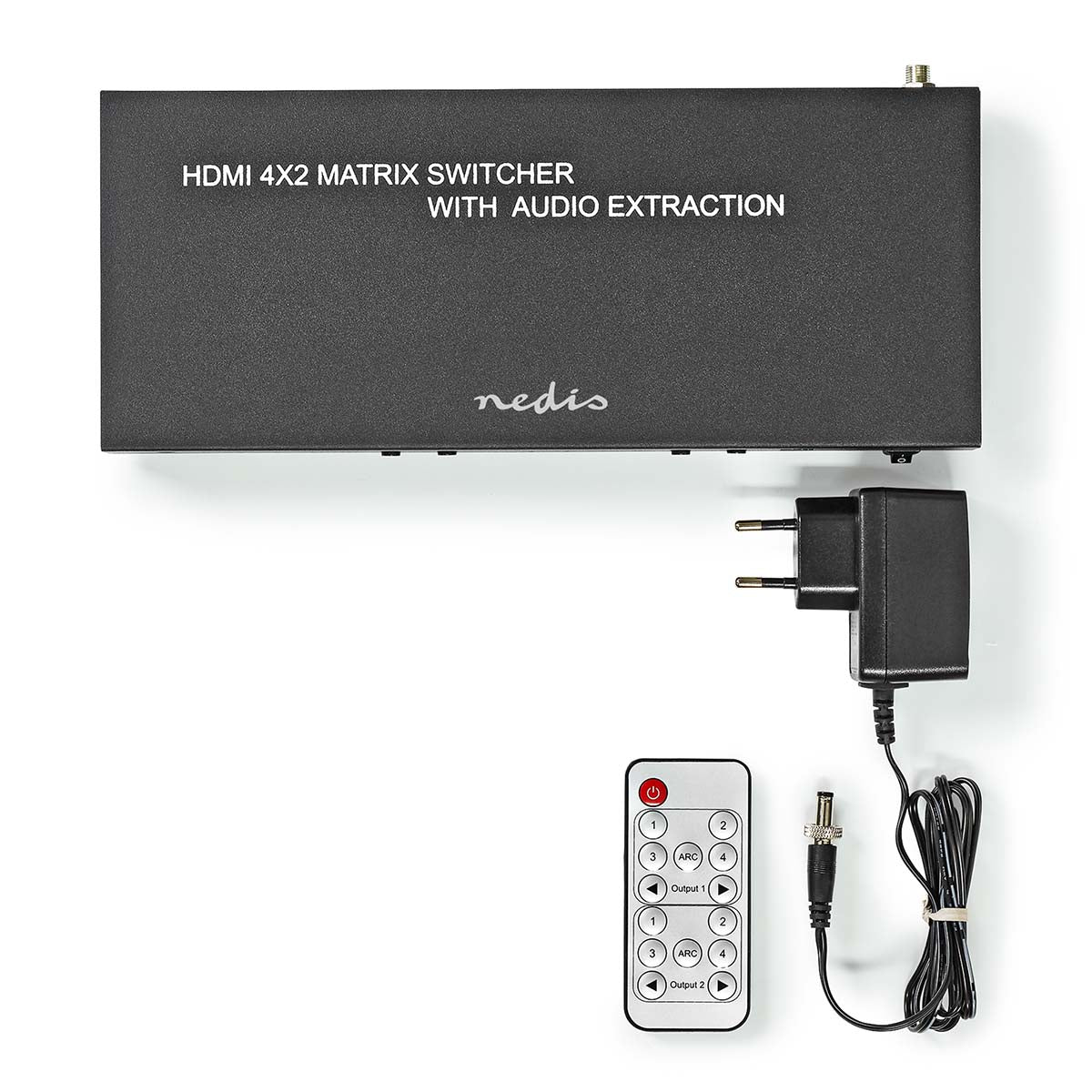

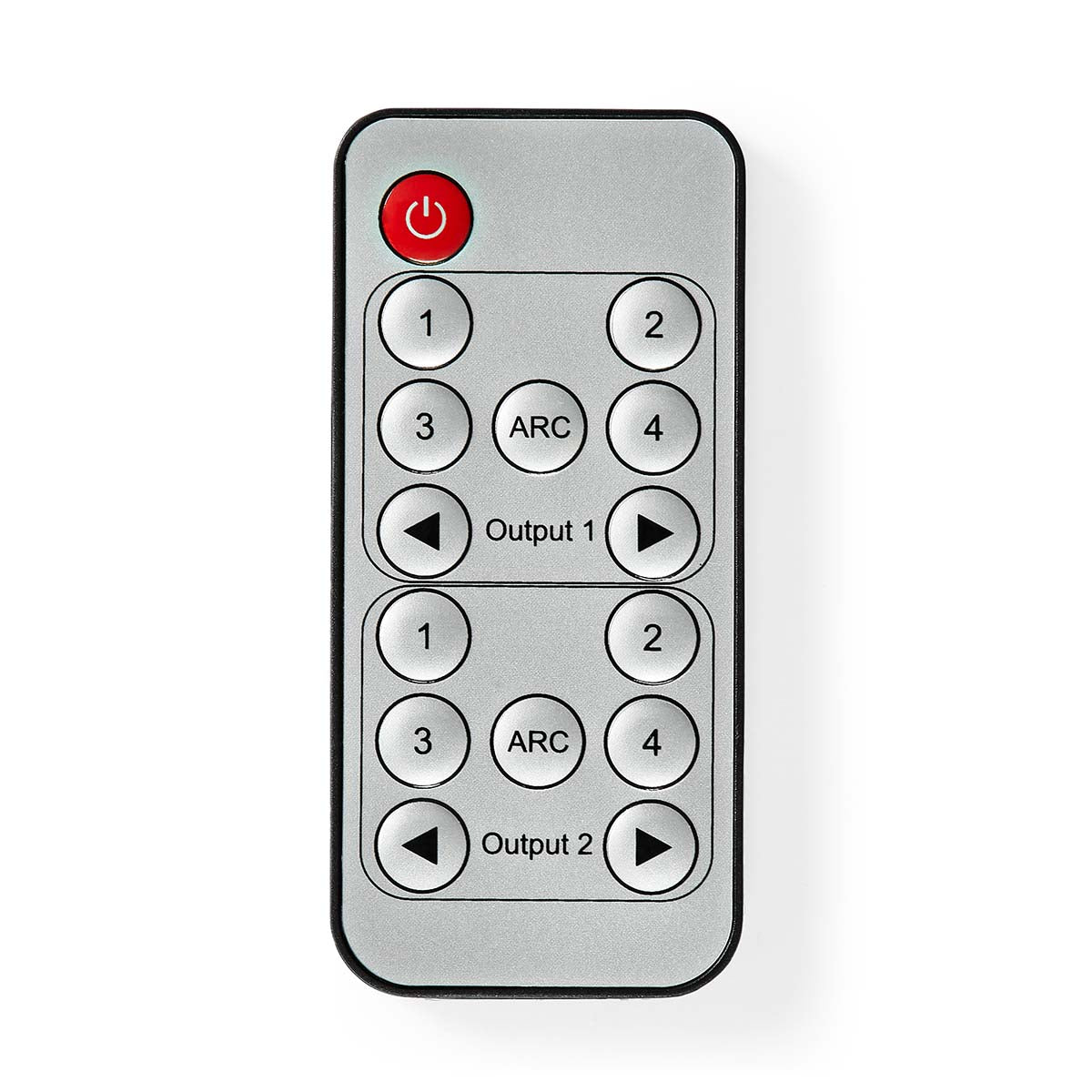

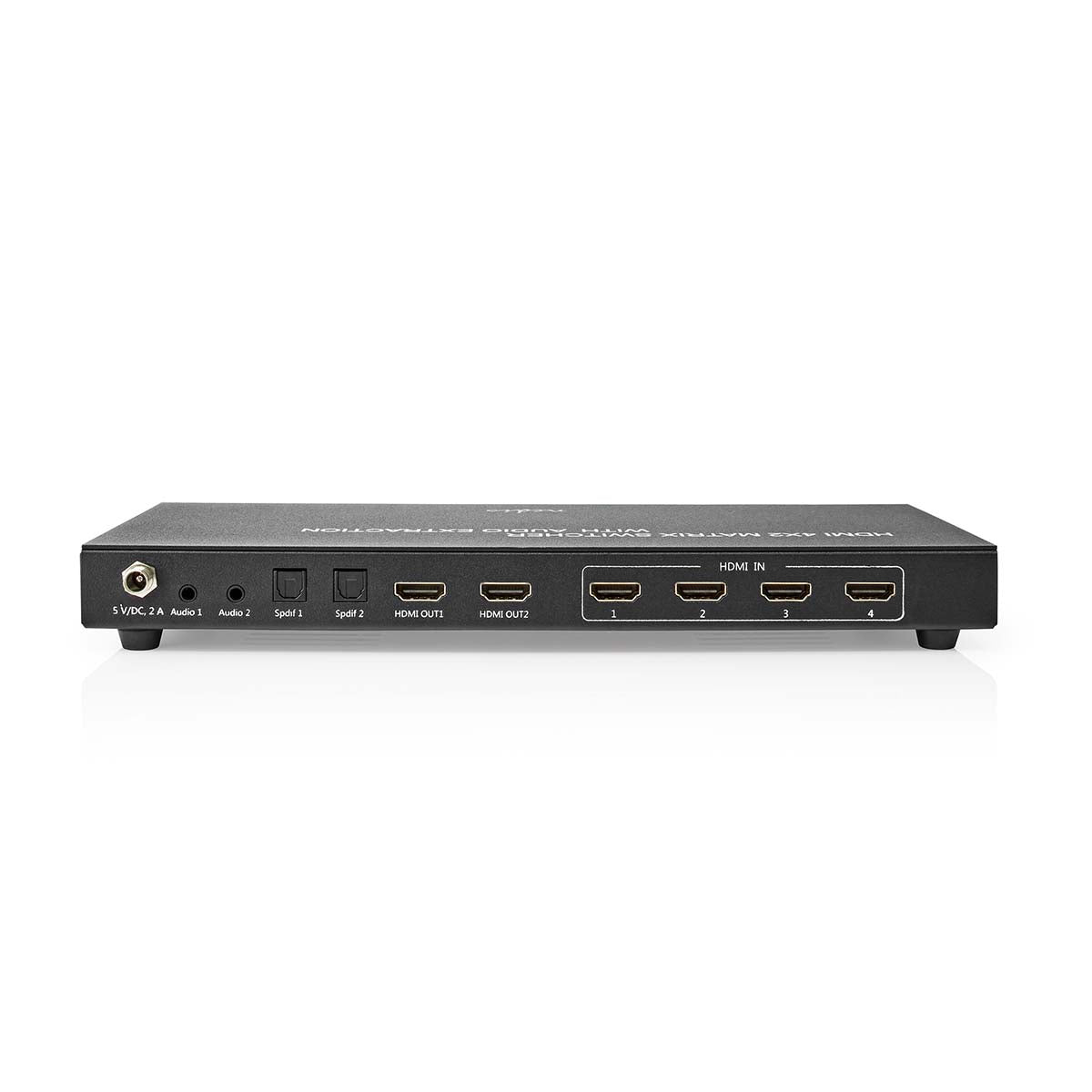

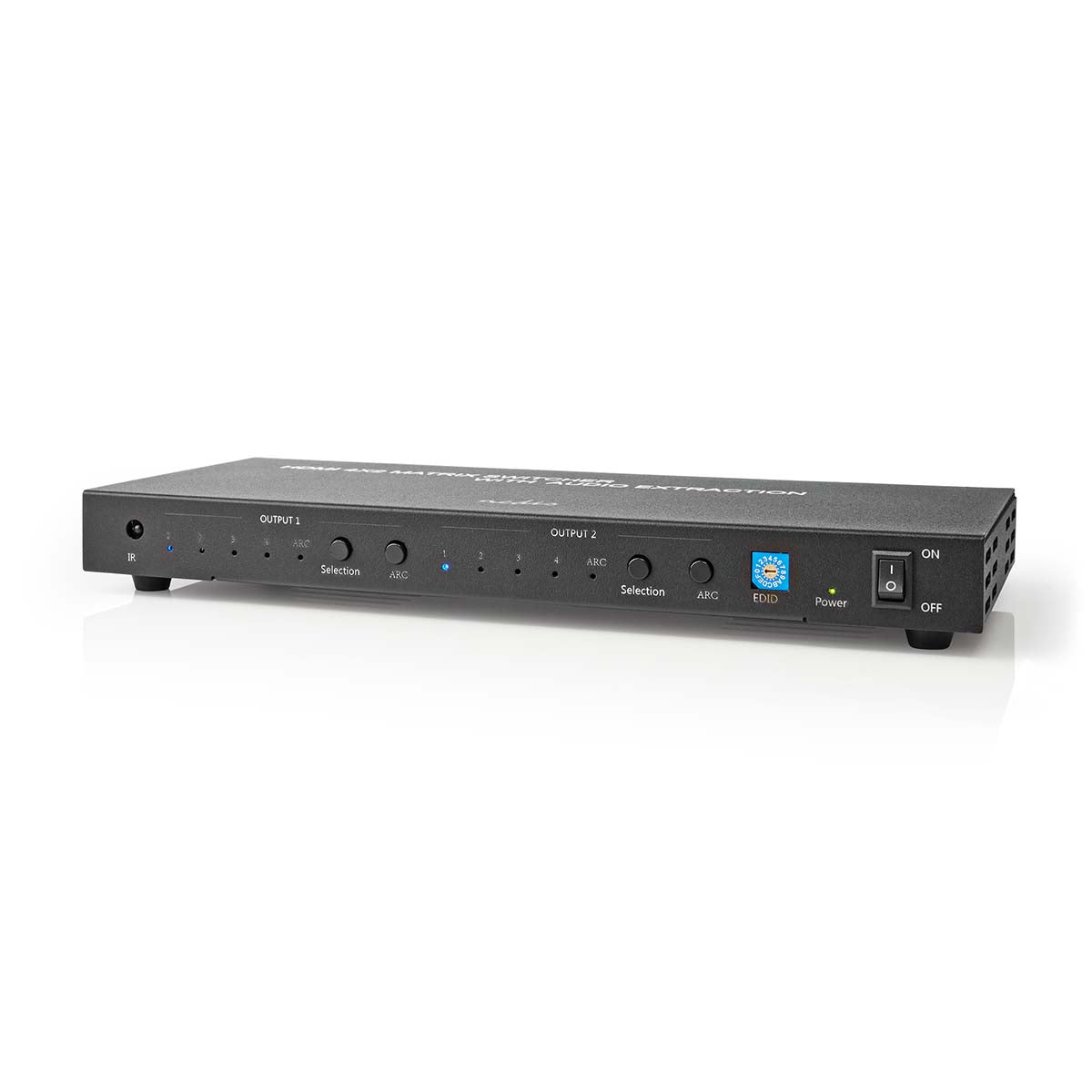

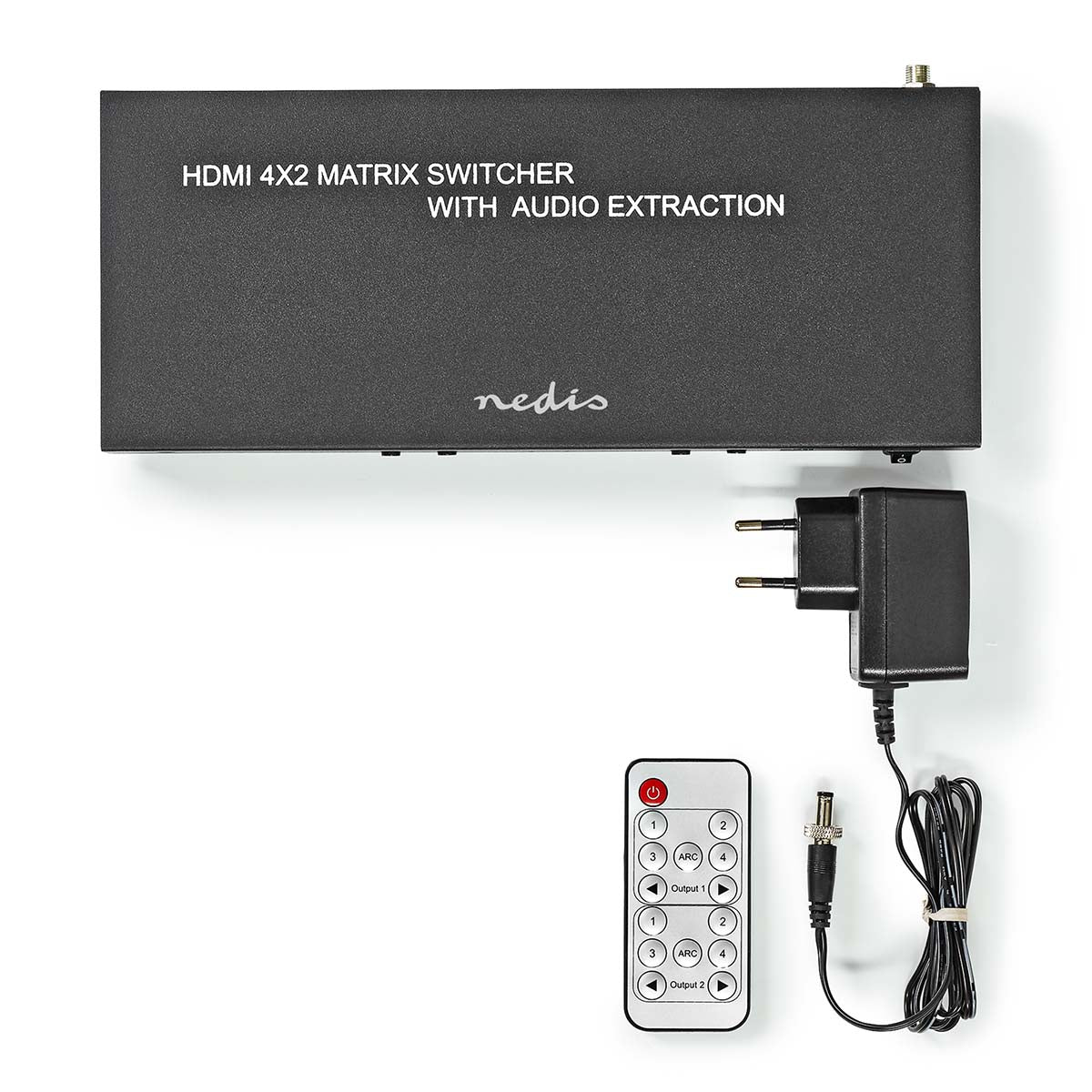

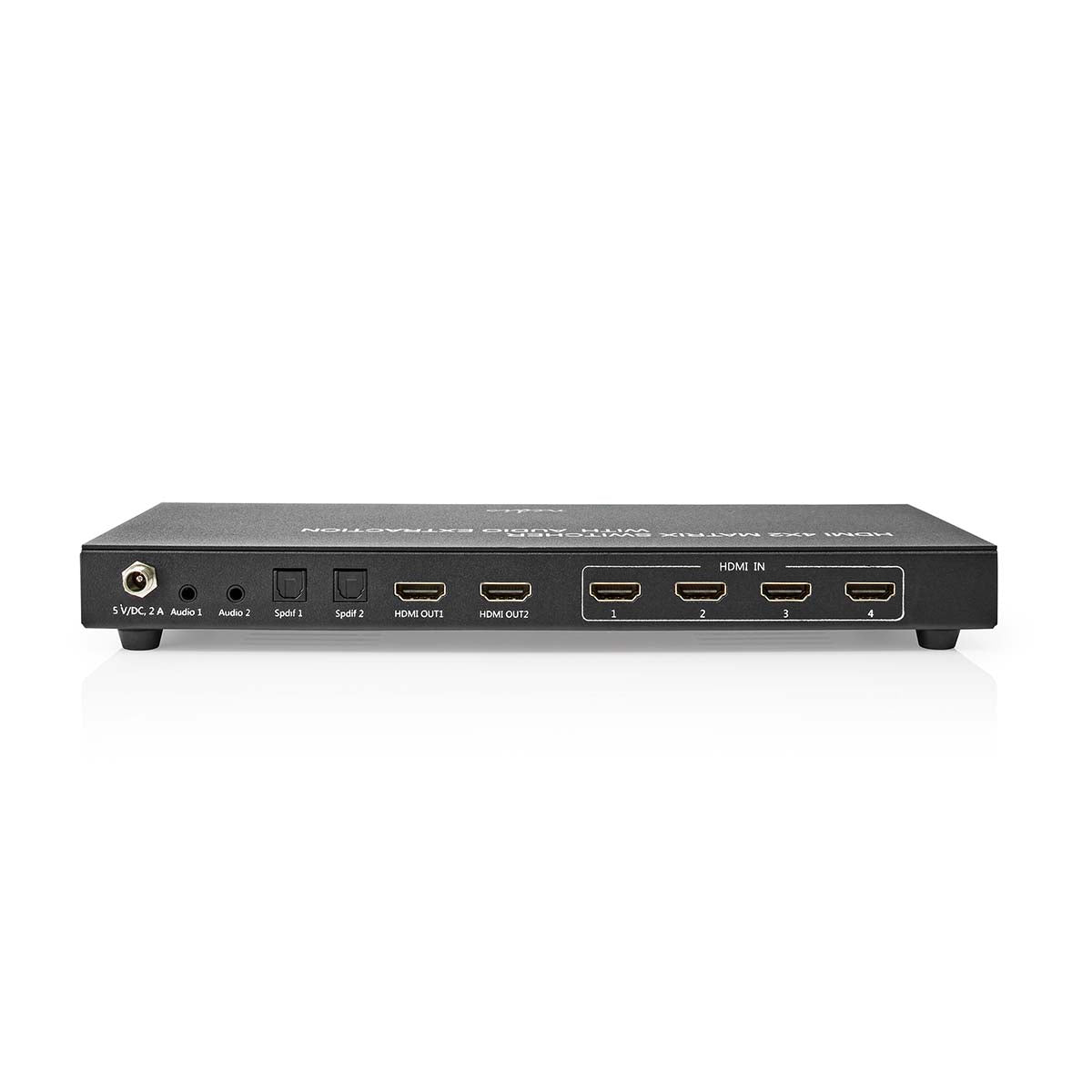

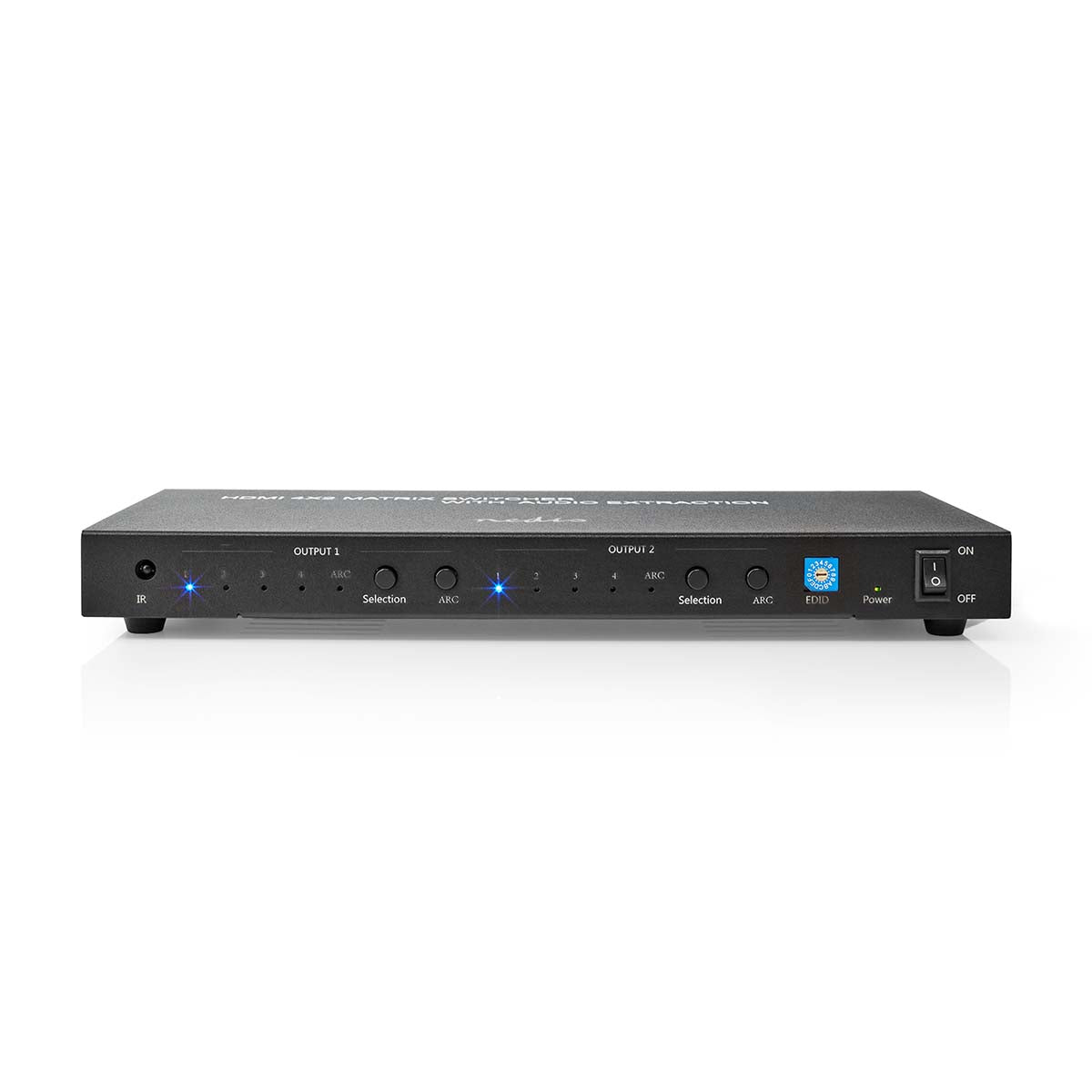

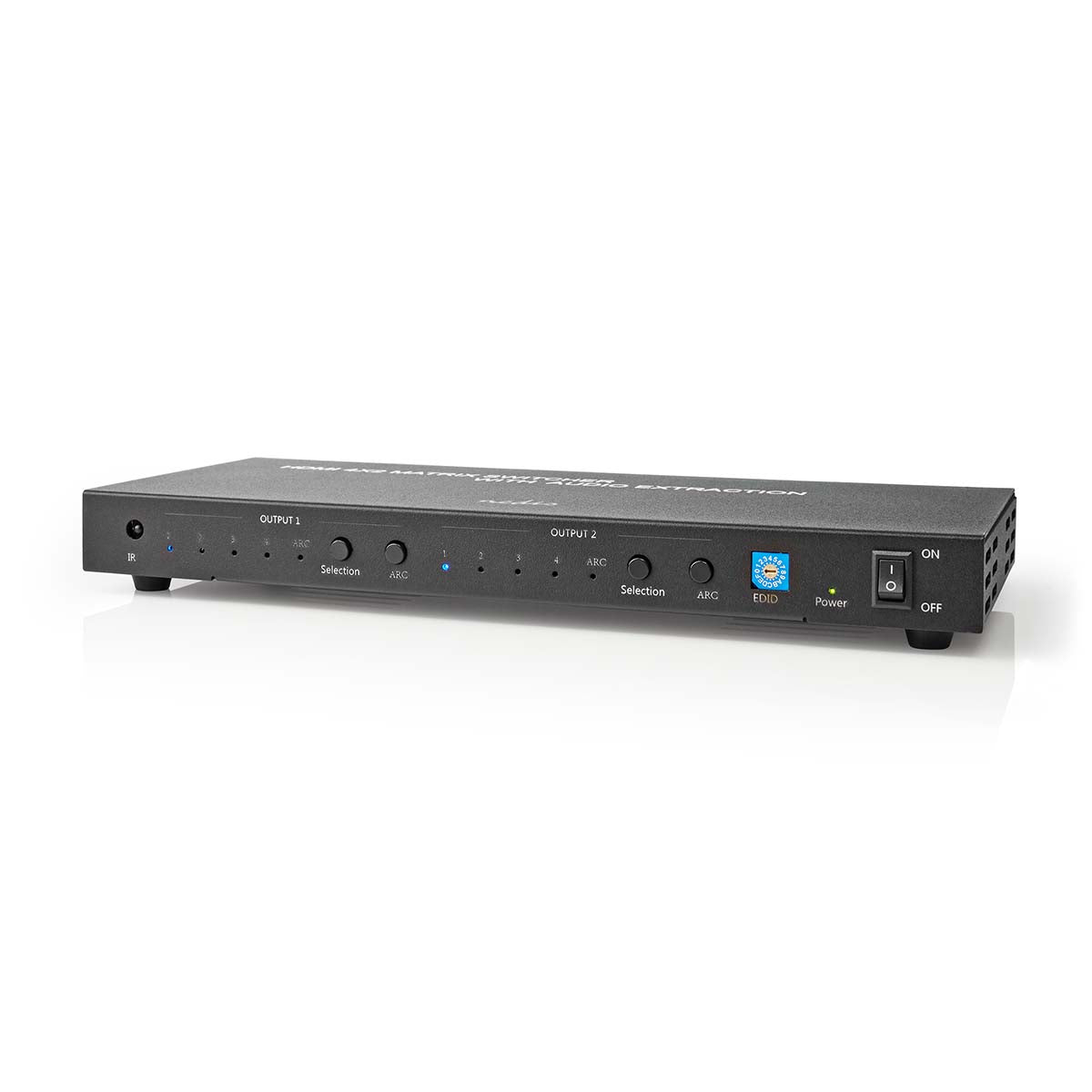

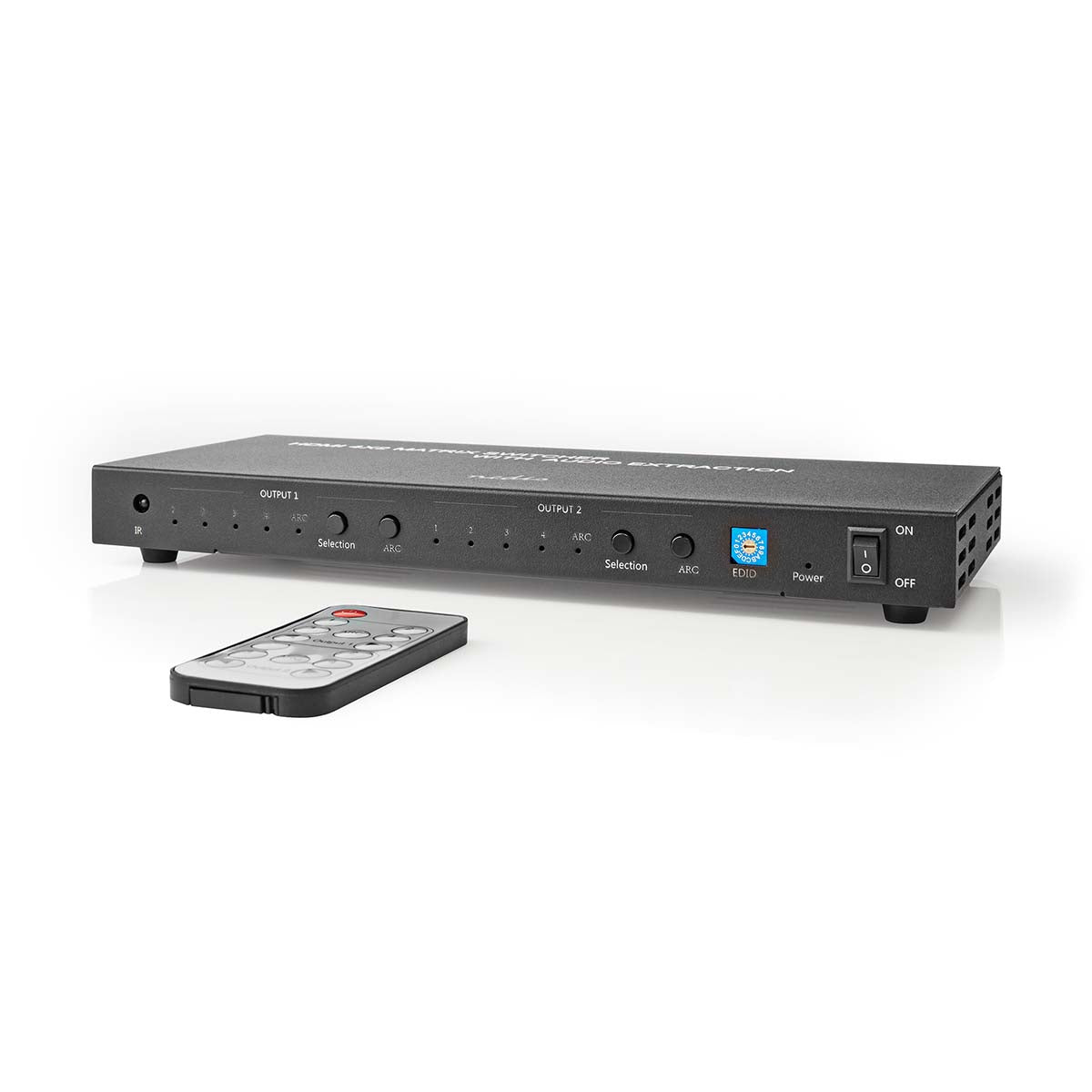

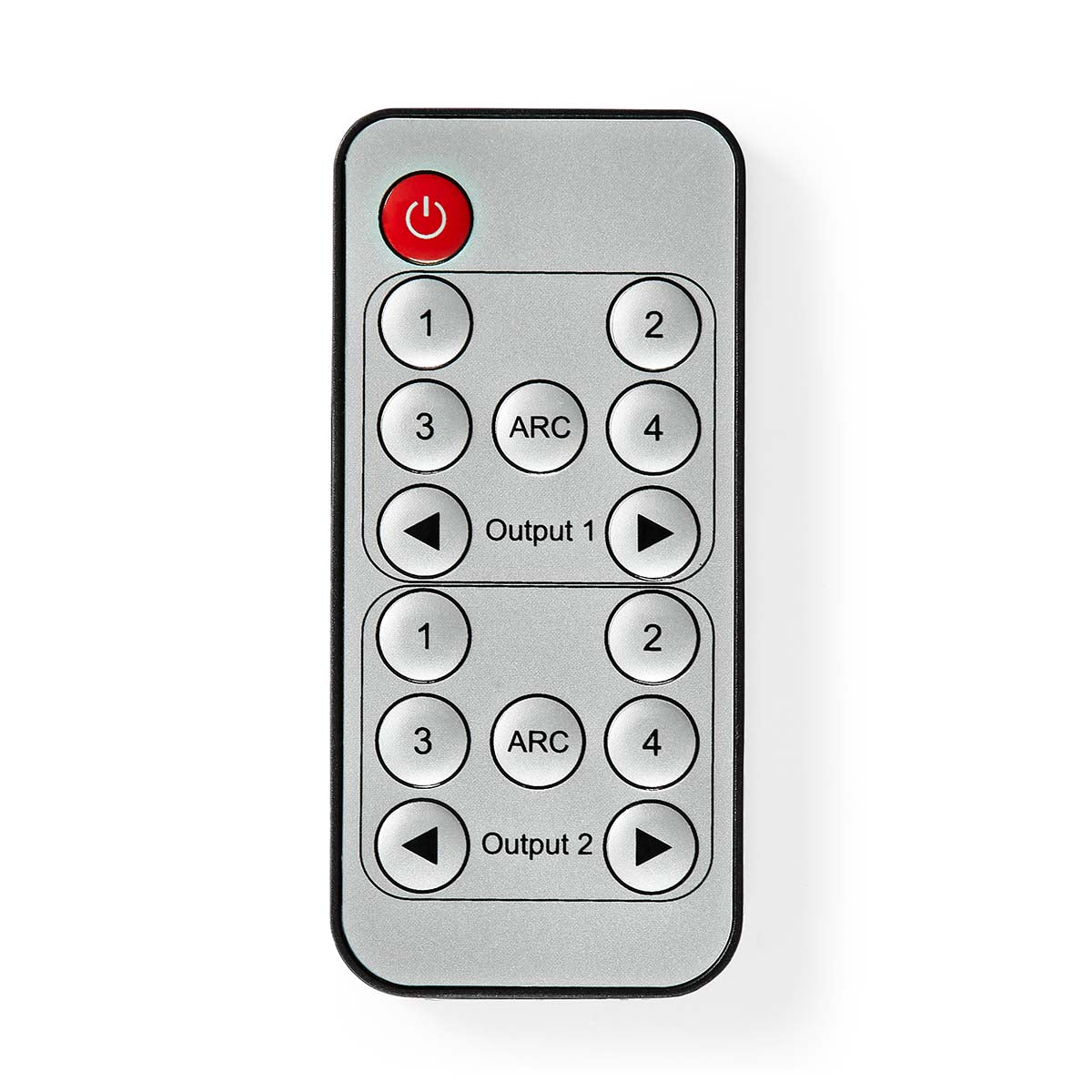

The 4K HDMI™ Matrix Switch 4x2 allows you to connect up to 4 devices with HDMI™ output to 2 TVs, monitors or beamers independently of each other and without having to swap cables, by remote control. Next to that, the matrix switch has 2x analog audio output and 2x digital audio output (optical Toslink). You can control it by the push button on the front or via the infrared remote control. Choose which device you want to see on which screen.

This allows you to watch a football match via the set-top box (input 1) on the TV (output 1) in the living room, while in another room a movie can be watched on a monitor (output 2) via the Blu-Ray player (input 3).

This HDMI™ matrix switch has an integrated HDMI™ audio extractor. This extractor ensures that the audio track is filtered from an HDMI™ cable. Via the HDMI™ outputs, audio and video are transferred to your screens and at the same time you can separately transfer the audio signal digitally and analog to a headphone, amplifier or receiver. An integrated digital to analog converter (D / A converter) ensures that the digital audio signal is converted to analog.

Specifications

  • Height
    25 mm
  • Length
    270 mm
  • Width
    110 mm
  • Weight
    838 g
  • Bandwidth
    600mHz
  • Clock frequency
    0MHz
  • Colour
    Grey
  • Colour formats
    RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
  • Connection input
    4x HDMI™ Input
  • Connection output
    2x HDMI™ Output, 2x 3.5 mm, 2x TosLink
  • Controlling method
    Manual, Remote Control
  • Device power input connection(s)
    DC 9.0 x 5.5 mm
  • Device type
    HDMI™ Matrix Switch
  • EDID settings
    Auto
  • HDCP version
    HDCP 2.2 Compatible
  • Input current
    2A
  • Input voltage
    5 V DC
  • Material
    Metal
  • Maximum bandwith
    18Gbps
  • Maximum resolution
    4K@60Hz
  • Number of Products in Package
    1pcs
  • Ports
    4 x 2port(s)
  • Power adapter cable length
    1.0m
  • Power consumption in operating mode
    5W
  • Power consumption in standby mode
    1W
  • Power plug
    Euro / Type-C (CEE 7/16)
  • Power source type
    Mains Powered
  • Remote controlled
    Yes
  • Required batteries (included)
    1x CR2032
  • SmartLife
    No
  • Supported resolutions
    4K@60Hz, 4K@30Hz, 1080p, 1080i, 720p, 576p, 576i, 480p, 480i
  • Supported technology
    ARC, Dolby True HD, Dolby Digital, DTS Digital, DTS-HD, DTS-HD-Master Audio, EDID, LPCM, HDCP
