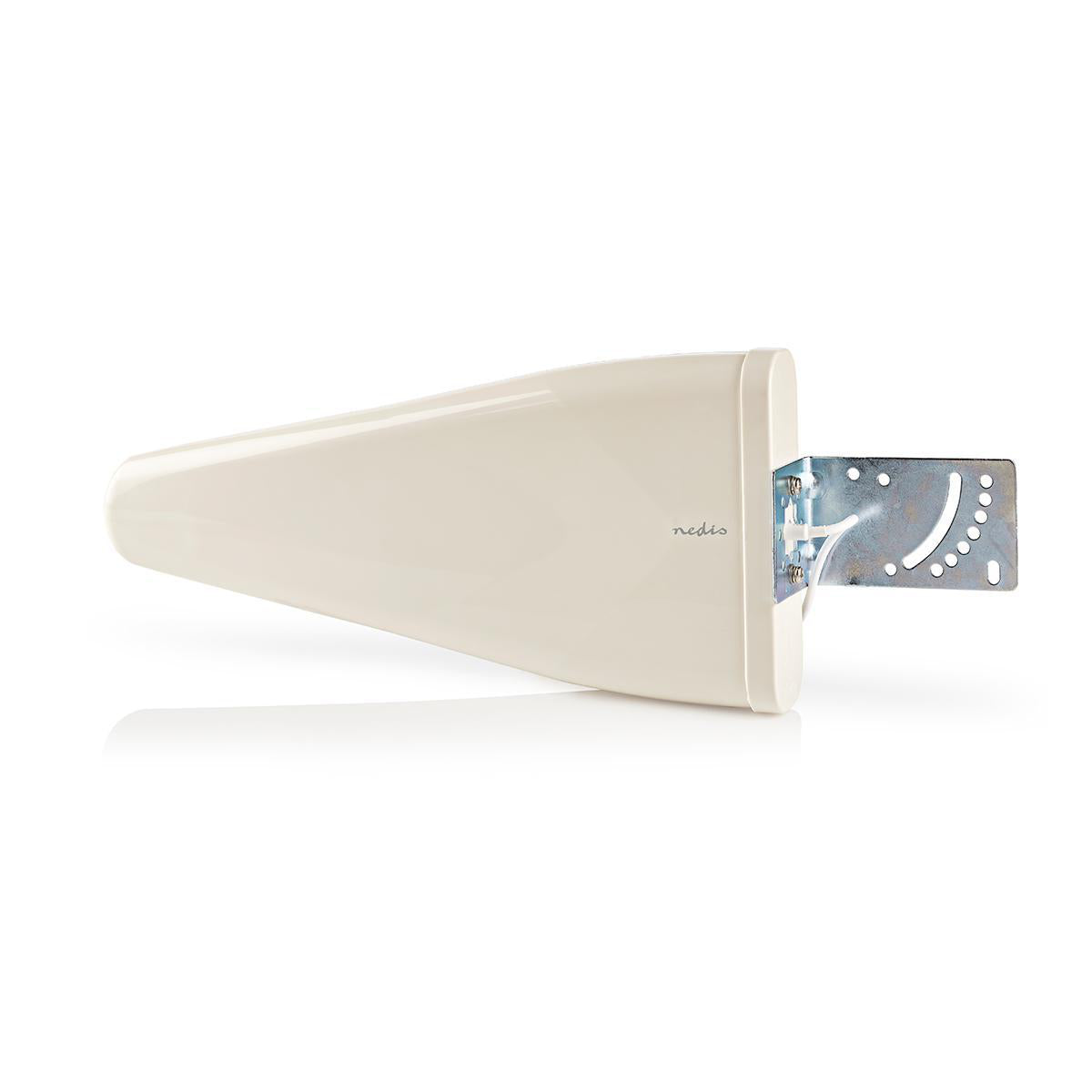

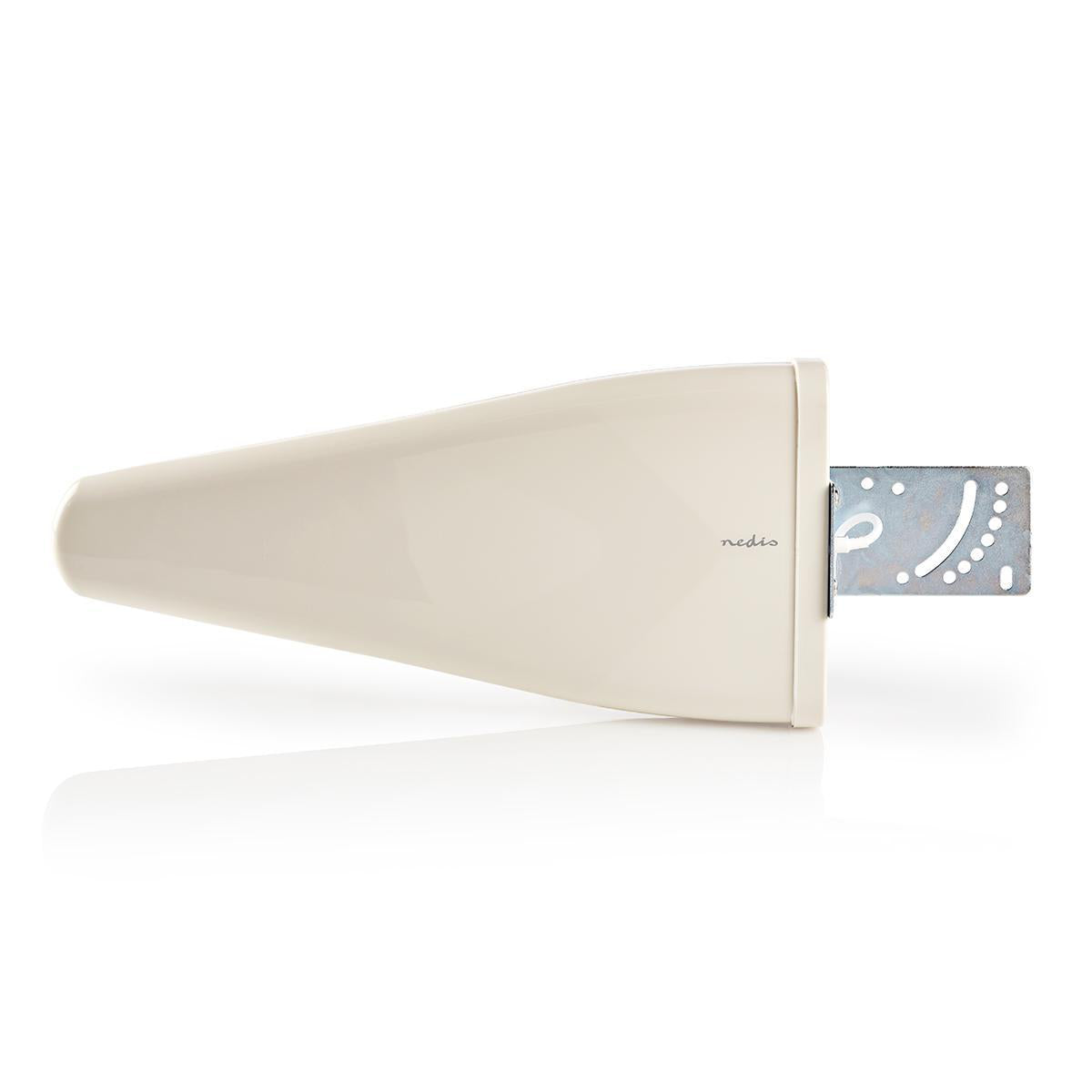

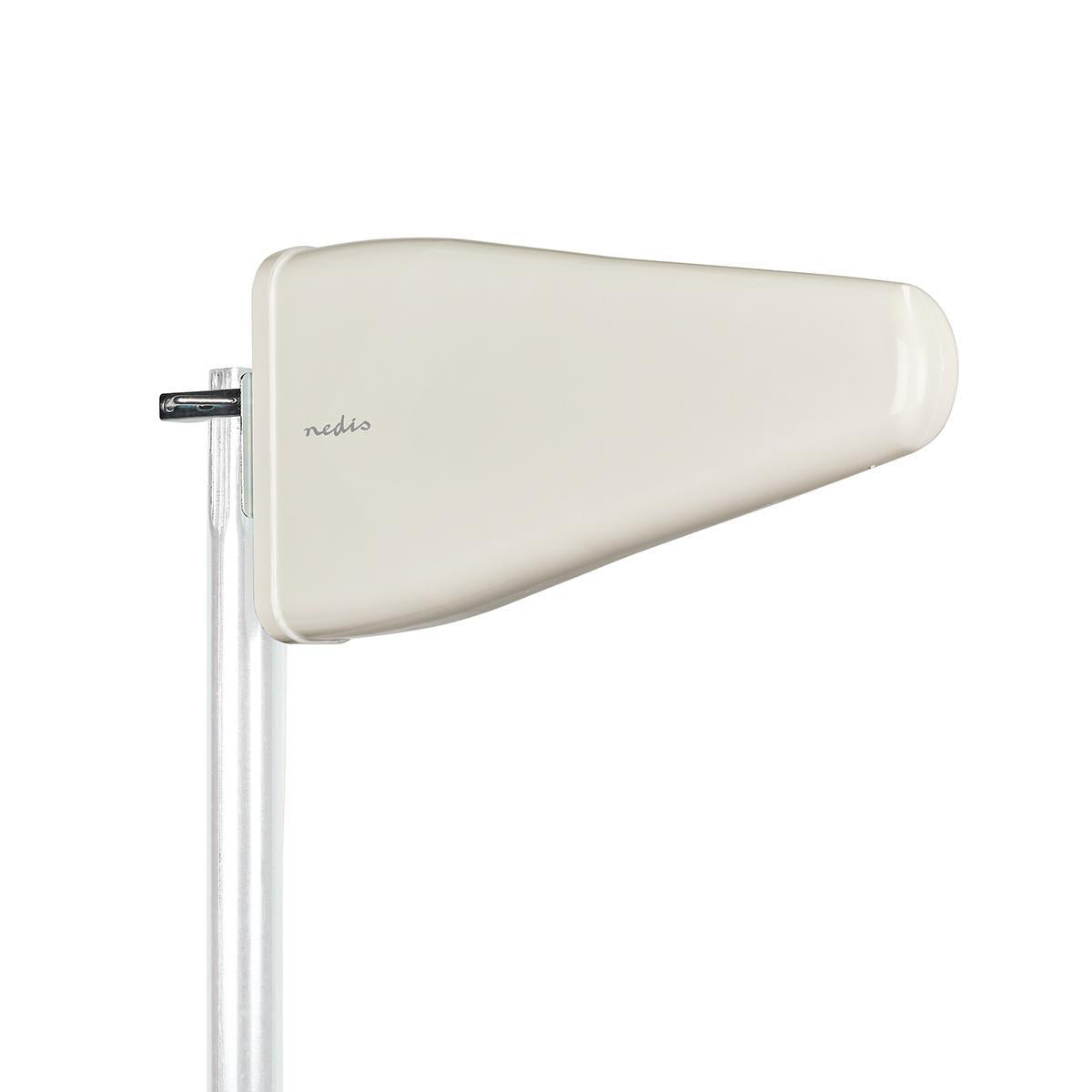

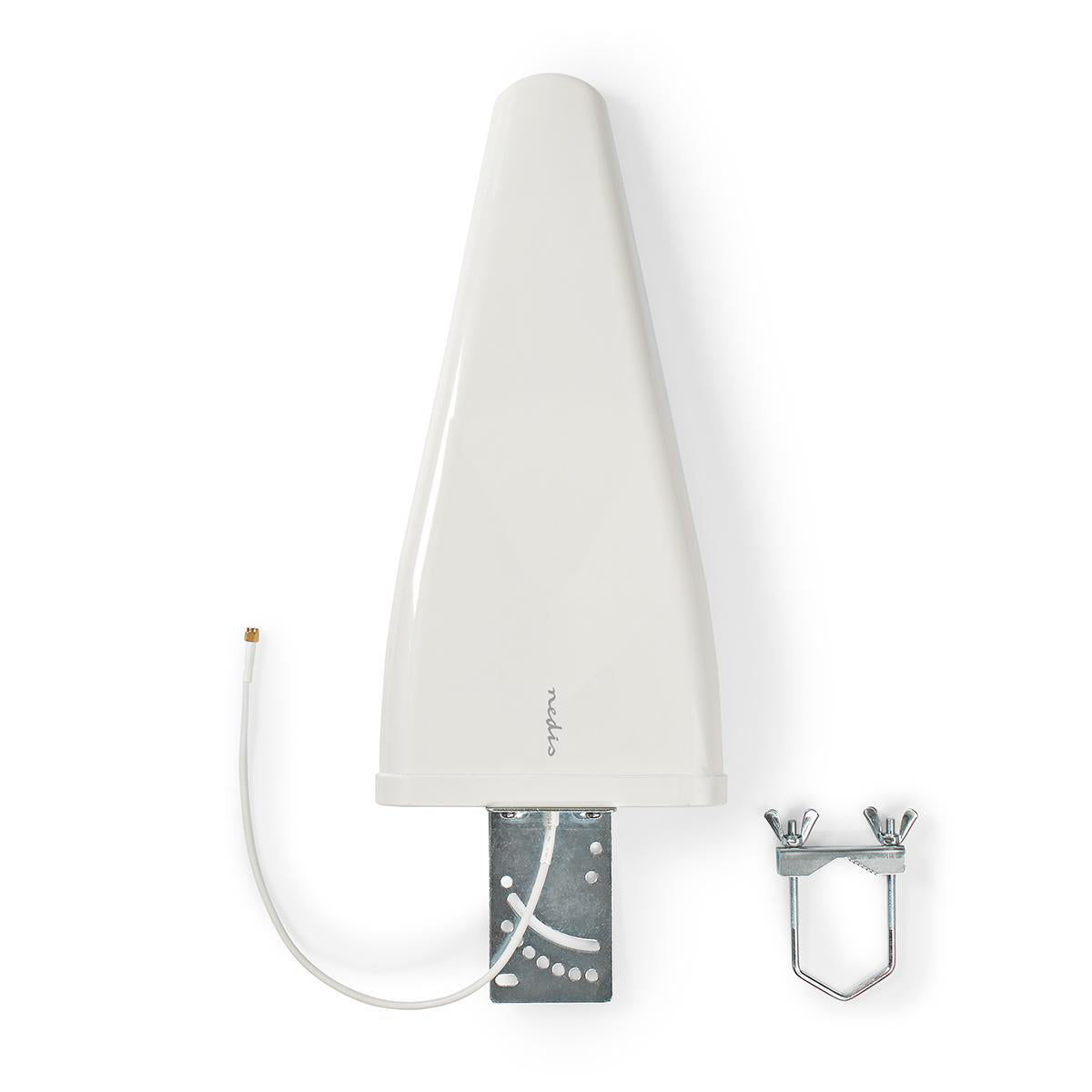

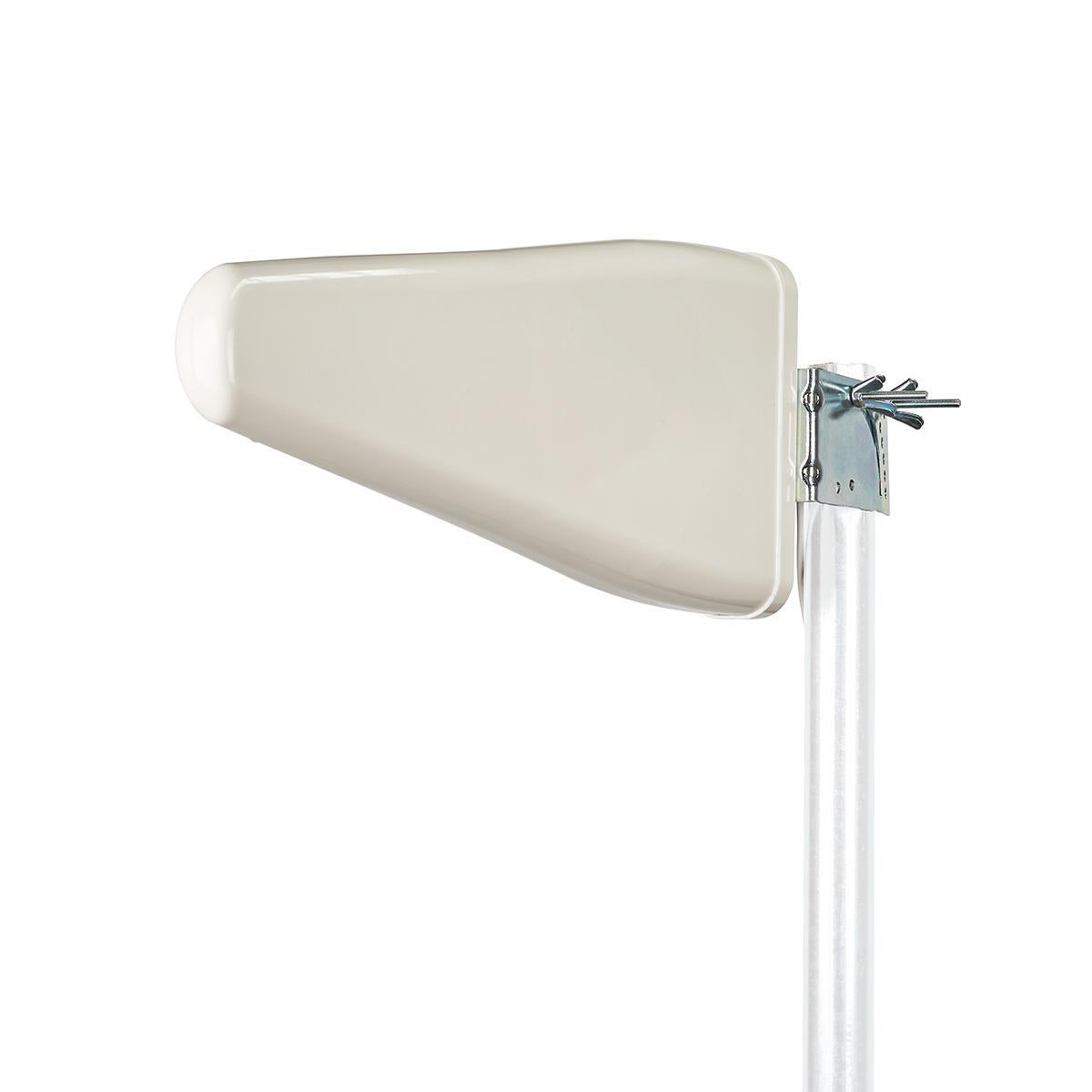

5G / 4G / 3G Antenna 5G - Indoor & Outdoor - 698-5000 MHz
Regular price
€47,99
Unit price
/
Unavailable
Improve your 5G/4G reception with this powerful indoor and outdoor antenna. Includes 4m cable for optimal placement. Suitable for routers and signal boosters.
5G / 4G / 3G Antenna 5G - Indoor & Outdoor - 698-5000 MHz is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Ordered before 7:30 PM, delivered tomorrow
8.9 score uit 175+ klantbeoordelingen!
Free shipping from €30
5G / 4G / 3G Antenna 5G - Indoor & Outdoor - 698-5000 MHz
Regular price
€47,99
Unit price
/
Unavailable
Description
Description
3G / 4G / 5G /GSM antenna to enhance data communication and increase the data transfer speed of the 5G and GSM signal, using a double frequency band. The antenna is supplied with a 4-metre cable to mount it on a location which guarantees optimum reception.
Connect the Antenna to your 4G or 5G device's Antenna Port. The device can be a 4G LTE or 5G CPE (Customer Premises Equipment), SIM card router, or cell phone Signal Boosters.
Ensure a secure and snug connection to minimize signal loss.
Adjust the antenna direction for maximum signal strength. Use a compass or refer to your
device's signal strength indicator to find the optimal direction. Gradually adjust the antenna
angle and direction, checking the signal strength periodically. Ensure a secure and snug
connection to minimize signal loss.
Connect the Antenna to your 4G or 5G device's Antenna Port. The device can be a 4G LTE or 5G CPE (Customer Premises Equipment), SIM card router, or cell phone Signal Boosters.
Ensure a secure and snug connection to minimize signal loss.
Adjust the antenna direction for maximum signal strength. Use a compass or refer to your
device's signal strength indicator to find the optimal direction. Gradually adjust the antenna
angle and direction, checking the signal strength periodically. Ensure a secure and snug
connection to minimize signal loss.
Specifications
Specifications
-
Height210 mm
-
Length80 mm
-
Width565 mm
-
Weight1250 g
-
Cable length4.00m
-
ColourWhite
-
Connector typeSMA Male
-

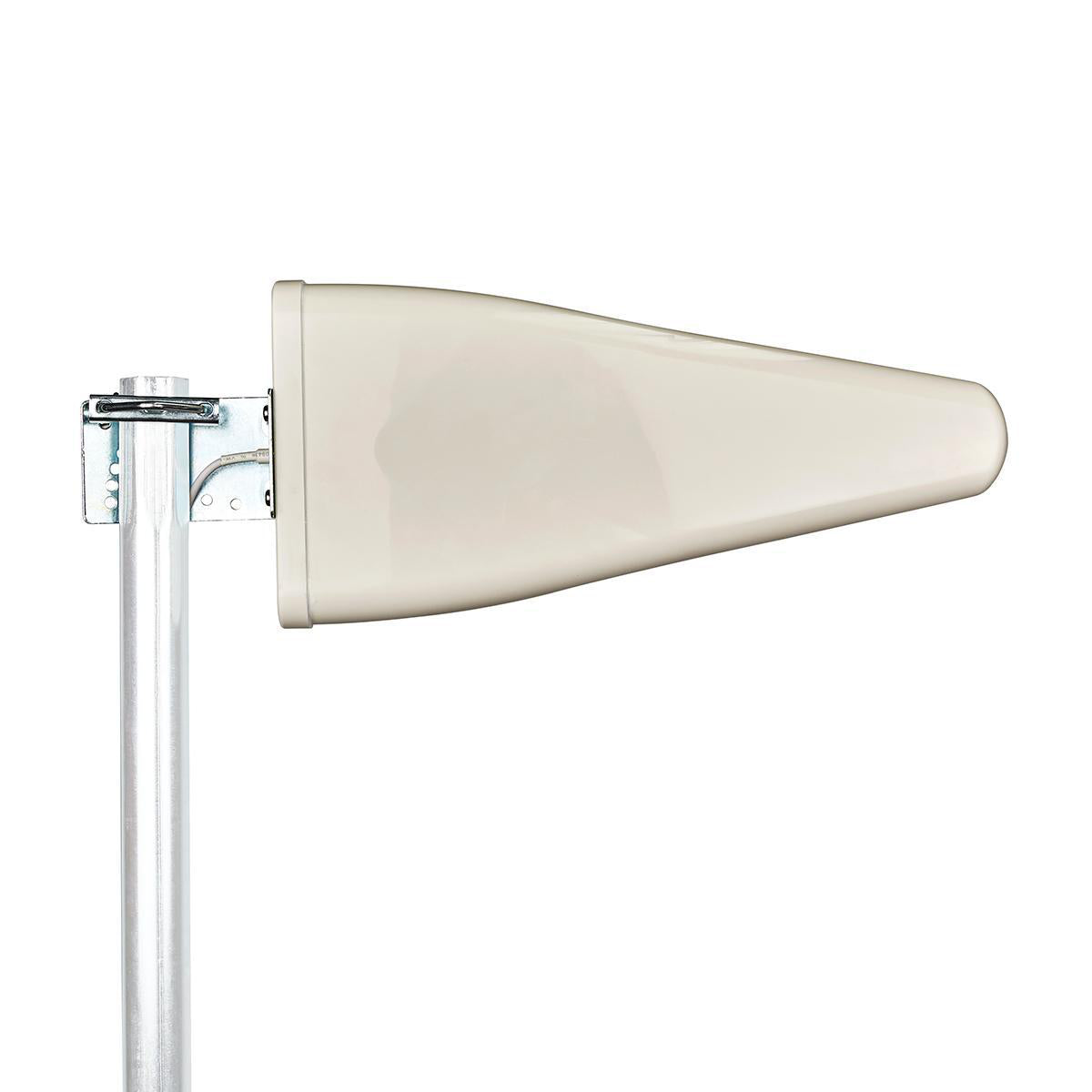

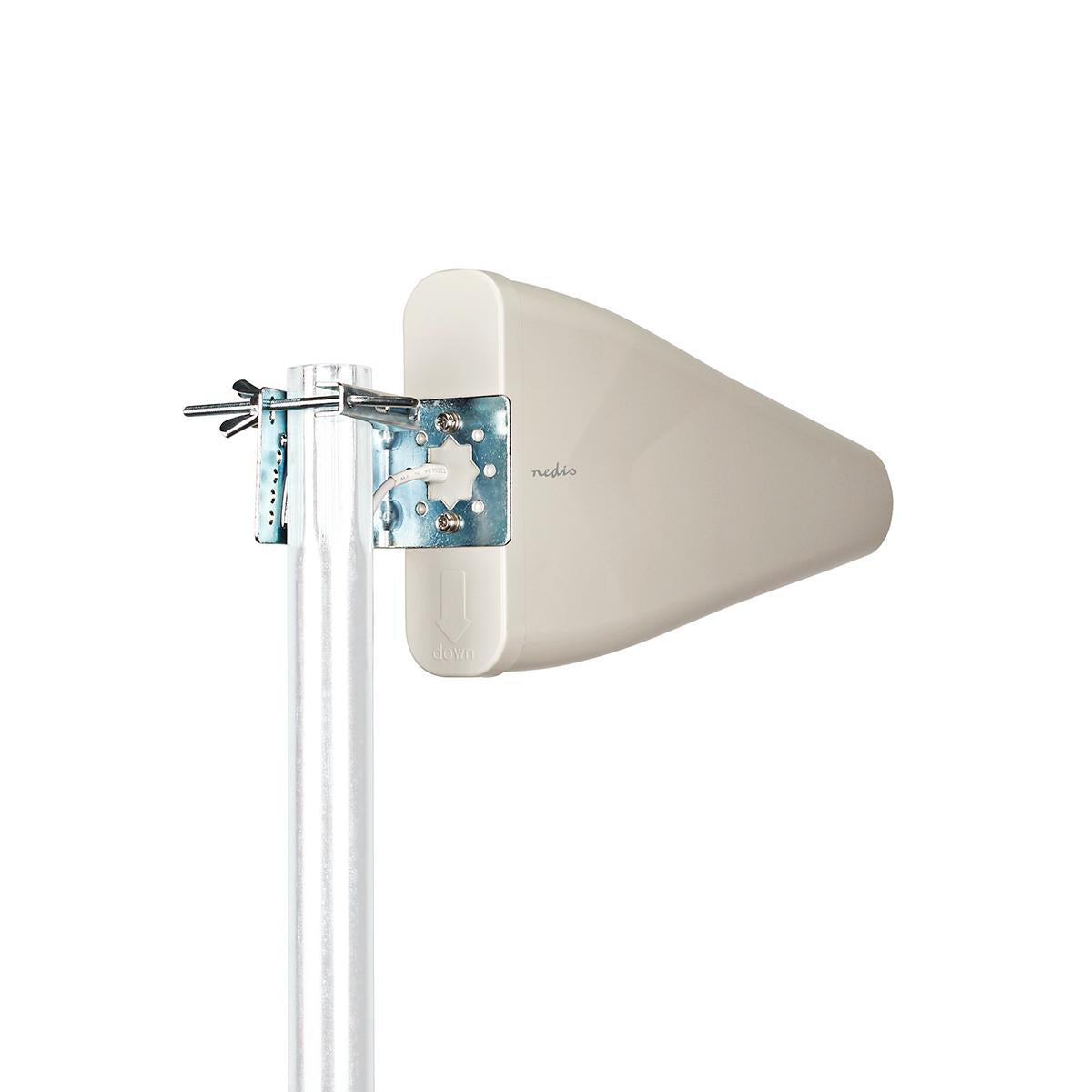

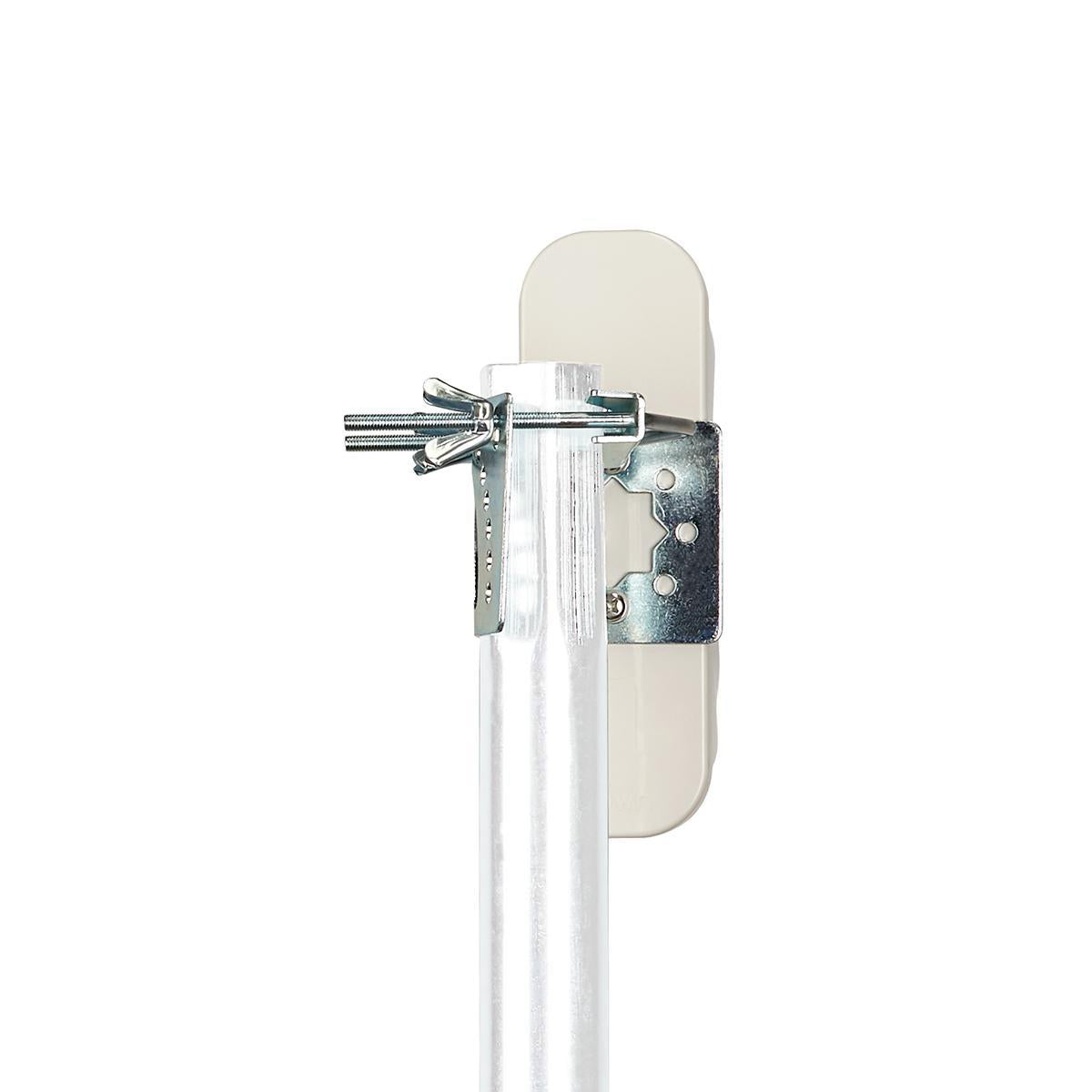

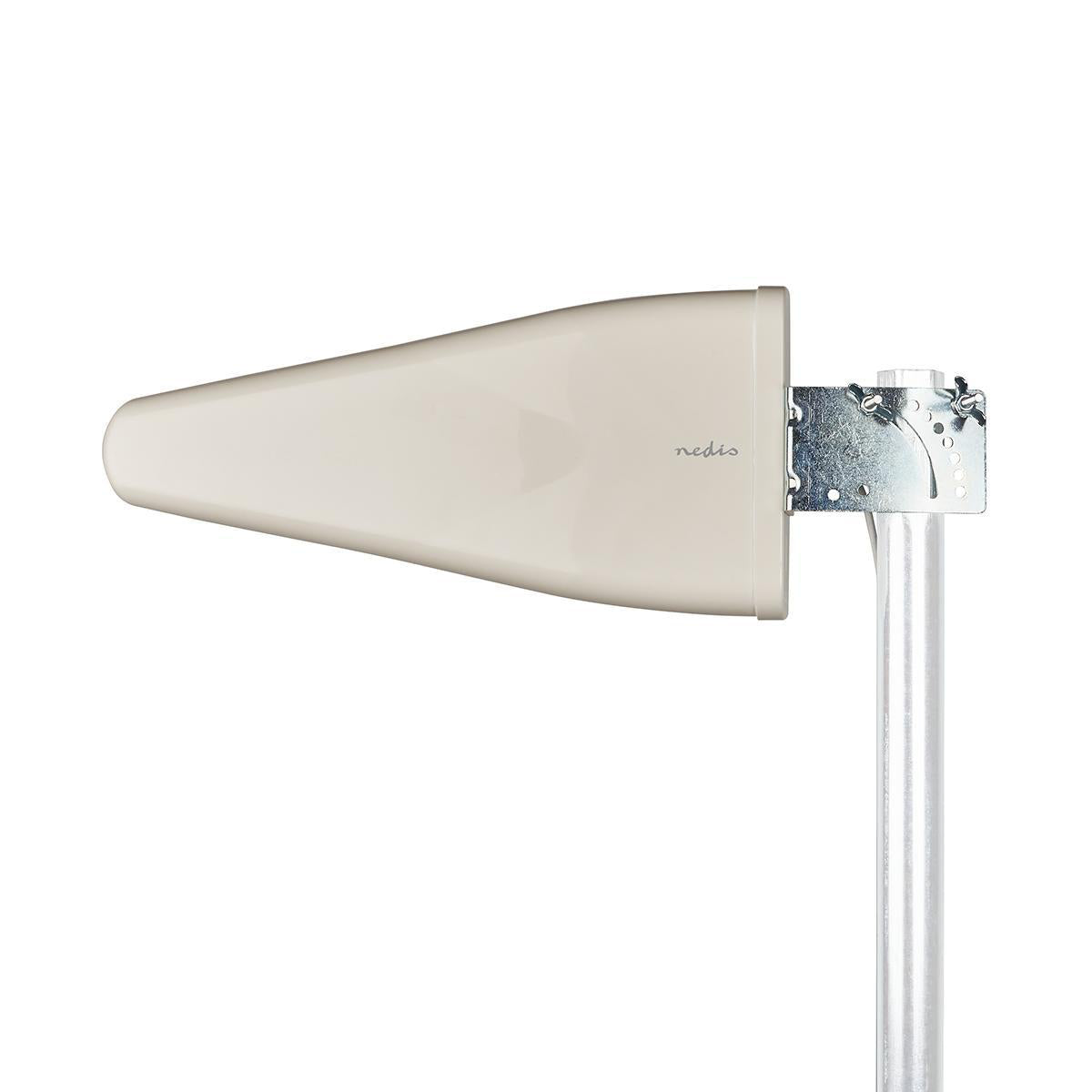

Diameter of mounting pole30-53mm
-
Front-back ratio21dB
-
Gain11dB
-
Horizontal beam width60°
-
Impedance external speaker50Ohm
-
Indoor / outdoorIndoor & Outdoor
-
Lightning protectionYes
-
MaterialAluminium, PVC
-
Number of elements1
-
Number of Products in Package1pcs
-
PolarisationLinear
-
Rated wind velocity120km/h
-
Reception frequency range698-5000MHz
-
Signal type5G
-
SmartLifeNo
-
Vertical beam width50°
-
Voltage standing wave ratio (VSWR)Less than 2.5
