CATV Amplifier Gain: 20 dB - 47 - 694 MHz - Number of outputs: 4

€31,99
American Express Maestro Mastercard Visa iDEAL Wero Bancontact Klarna PayPal Apple Pay Google Pay

Description

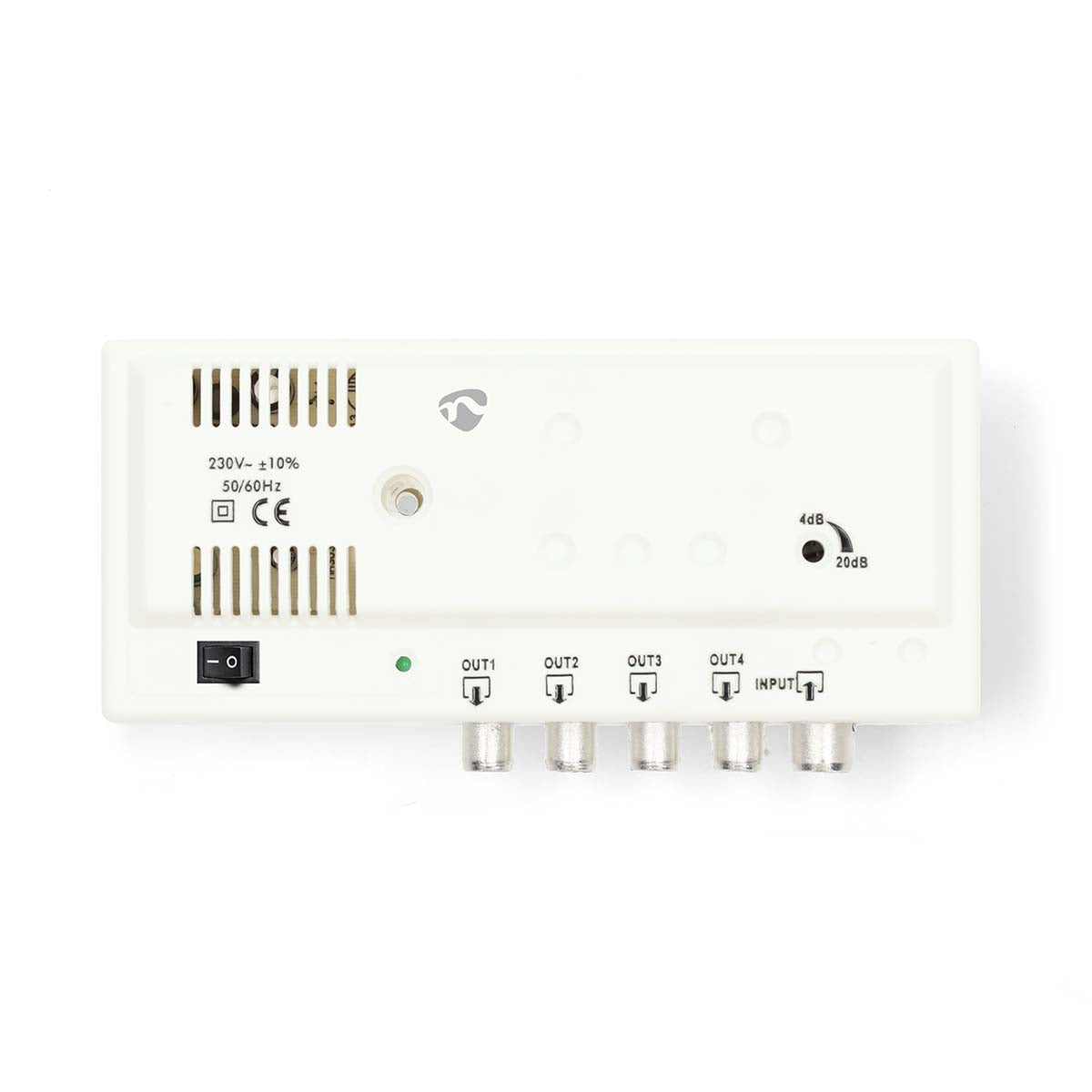

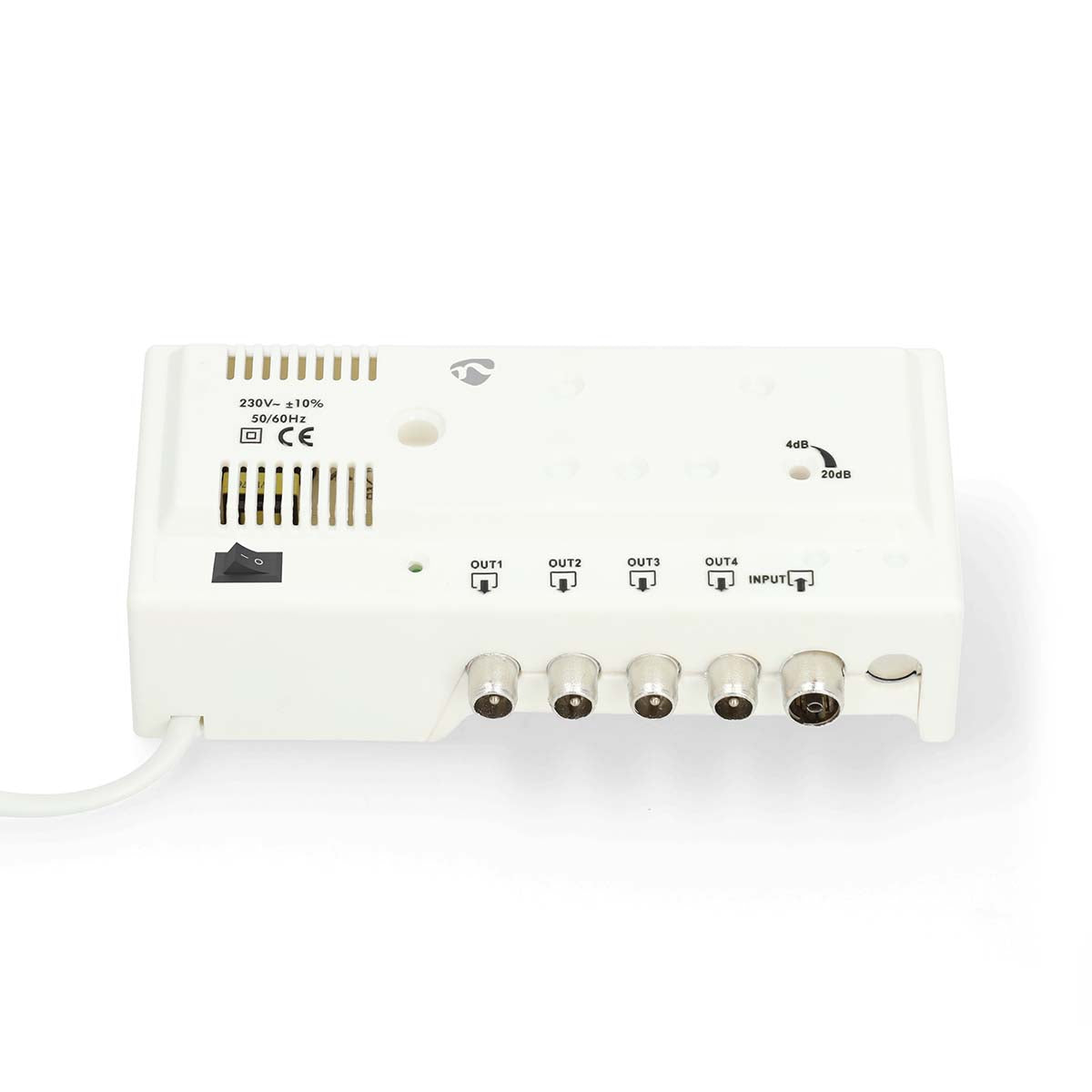

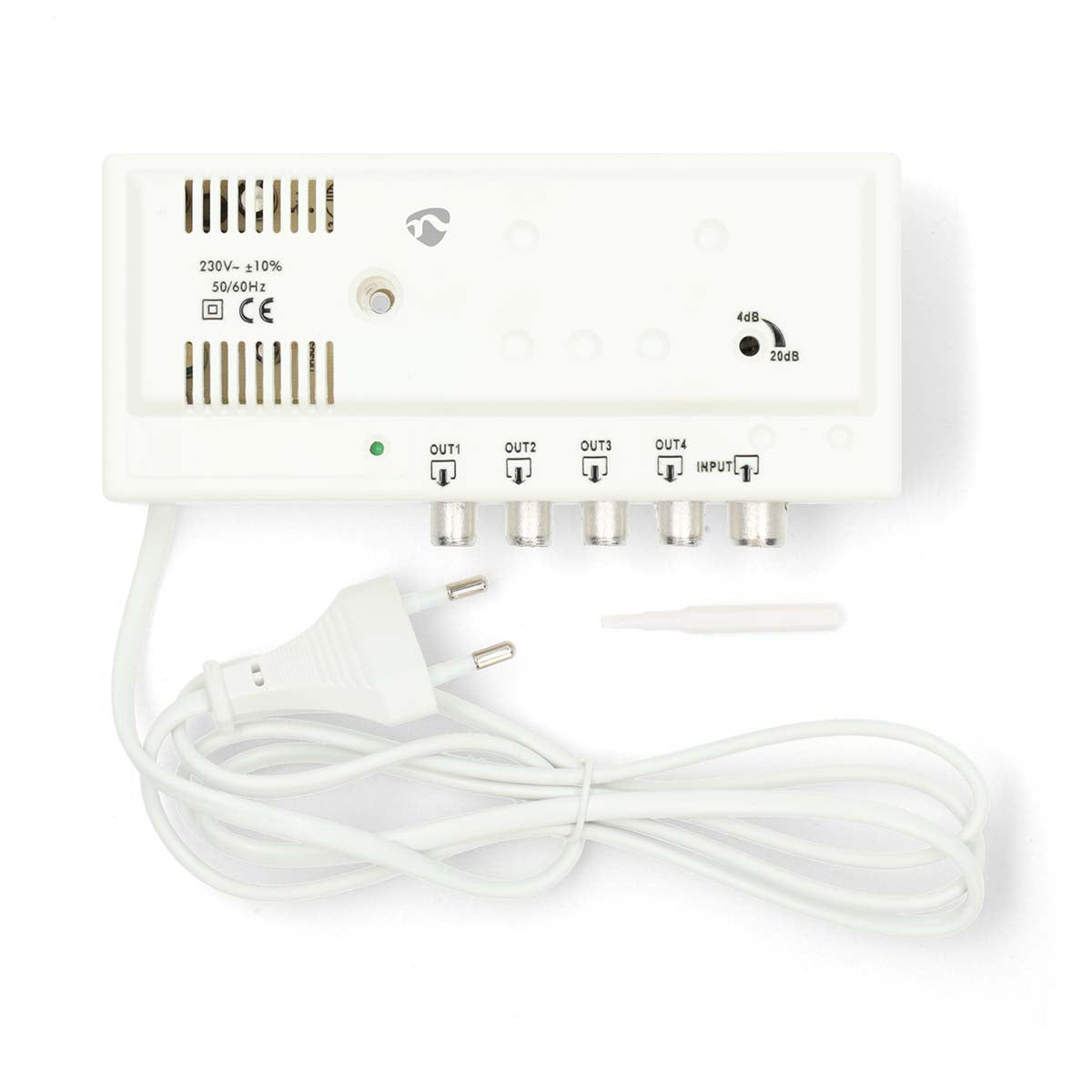

The Nedis 4-way indoor antenna amplifier (20 dB) can be used for connecting up to four receivers seamlessly. The amplifier is your gateway to superior signal strength for both TV and radio. Its active distribution spans 47 - 694 MHz, ensuring optimal performance across a wide frequency range.

Gain control empowers you to fine-tune the amplifier input, aligning it with the source output for unparalleled clarity. Equipped with an IEC socket input and four IEC plug outputs, installation is a breeze. Plus, the amplifier comes complete with a built-in 230 V power supply unit, enhancing convenience.

Specifications

  • SKU
    SAMP42244WT
  • EAN/GTIN
    5412810469123
  • Height
    46 mm
  • Length
    80 mm
  • Width
    162 mm
  • Weight
    352 g
  • Application
    CATV
  • CATV accessory type
    CATV Amplifier
  • Colour
    White
  • Connector type
    IEC (Coax)
  • Device power input connection(s)
    Euro
  • Frequency range
    47 - 694MHz
  • Gain
    20dB
  • Gain control
    0 - 18dB
  • Impedance external speaker
    75Ohm
  • Input current
    1.0A
  • Input voltage
    230 V AC 50/60 Hz
  • Insertion loss
    8dB
  • Material
    ABS, Zinc Alloy
  • Noise figure
    4dB
  • Number of inputs
    1
  • Number of outputs
    4
  • Number of Products in Package
    1pcs
  • Output level
    100dBuV
  • Power adapter cable length
    1.50m
  • Power cable side A
    Euro
  • Power plug
    Euro / Type-C (CEE 7/16)
  • Power source type
    Mains Powered
  • SmartLife
    No
