LNB Quad Monoblock 6.0° - Device power output connection(s): 4x F-Connector - Noise figure range: 0.85 dB
Regular price
€39,99
Unit price
/
Unavailable
LNB Quad Monoblock 6.0° - Device power output connection(s): 4x F-Connector - Noise figure range: 0.85 dB is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Quad Monoblock LNB 6° for superior satellite signals. Low noise figure 0.2-0.85 dB, 4 F-connectors, optimal for dishes 90-120cm. Top quality reception guaranteed!
- Ordered before 8 PM, delivered within 1–2 working days
- Free returns within 30 days
- Pay your way. Upfront or later with Klarna
LNB Quad Monoblock 6.0° - Device power output connection(s): 4x F-C...
Regular price
€39,99
Unit price
/
Unavailable
Description
Description

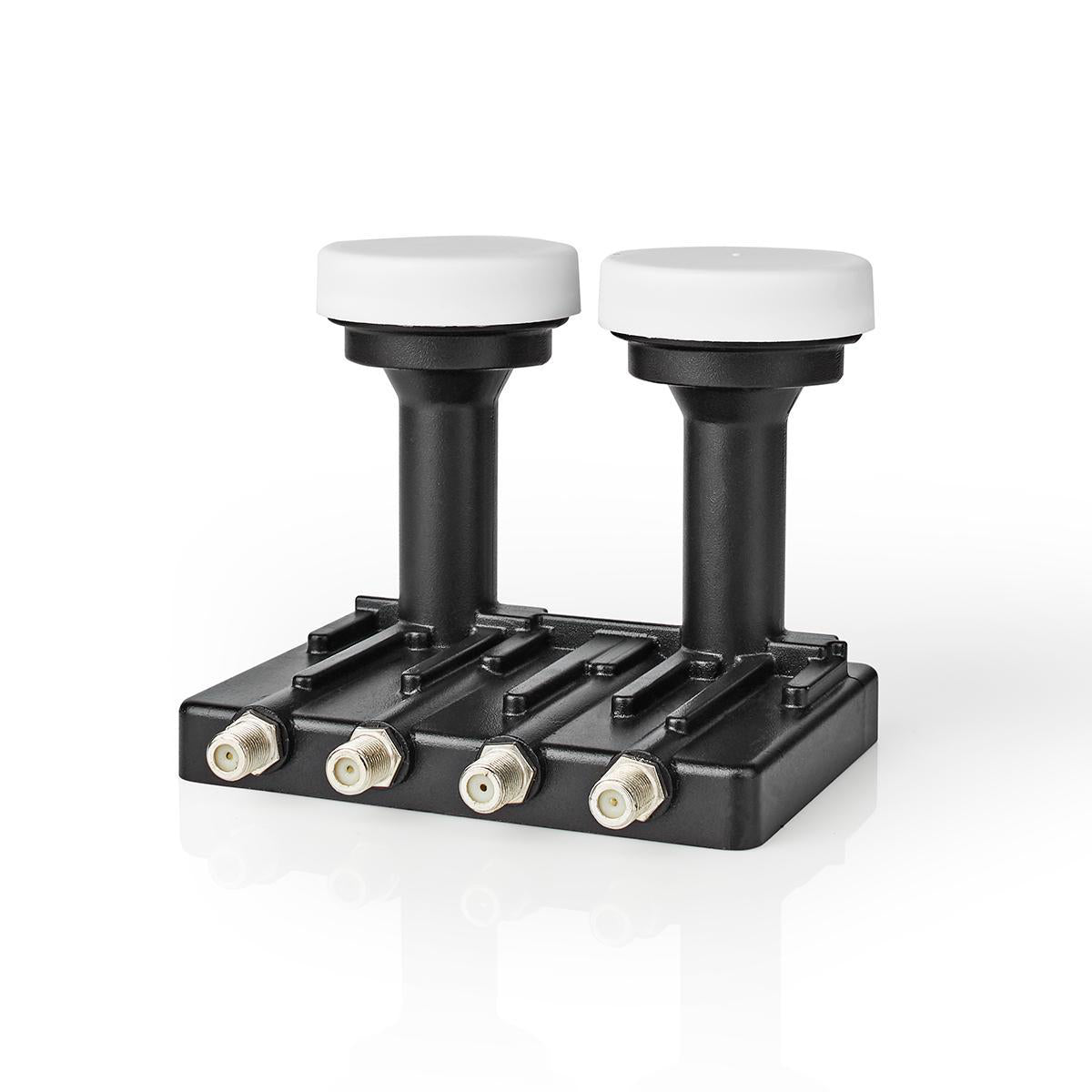

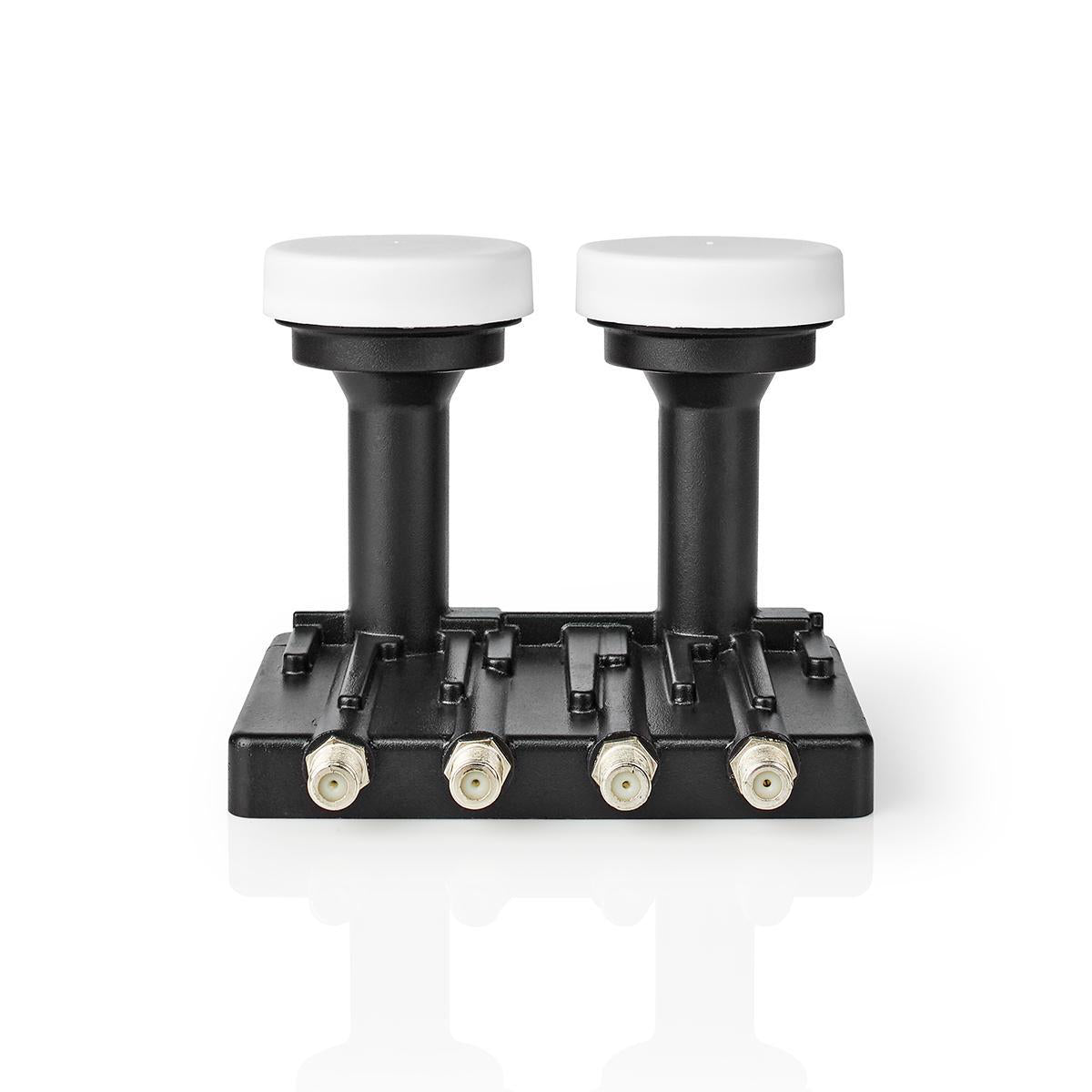

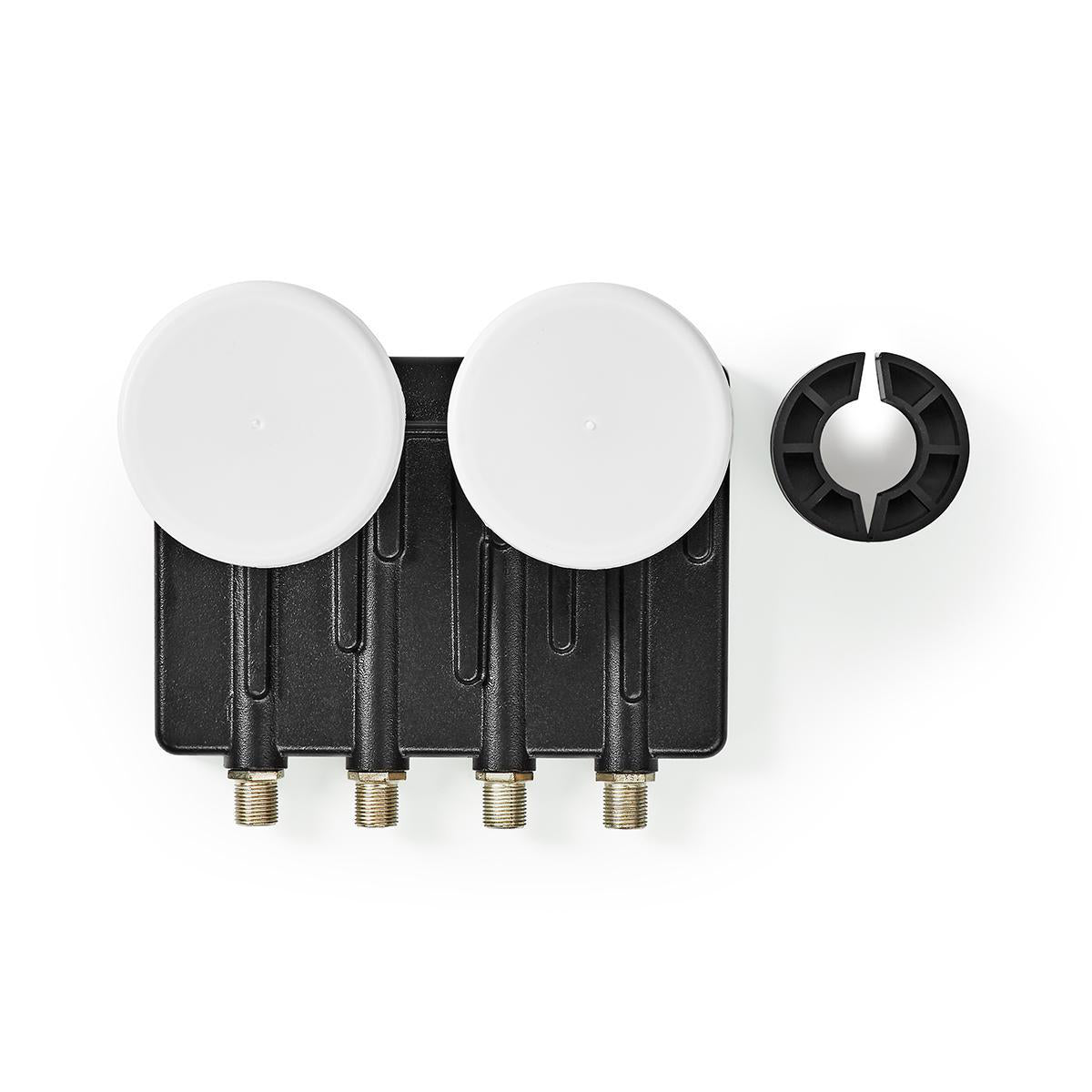

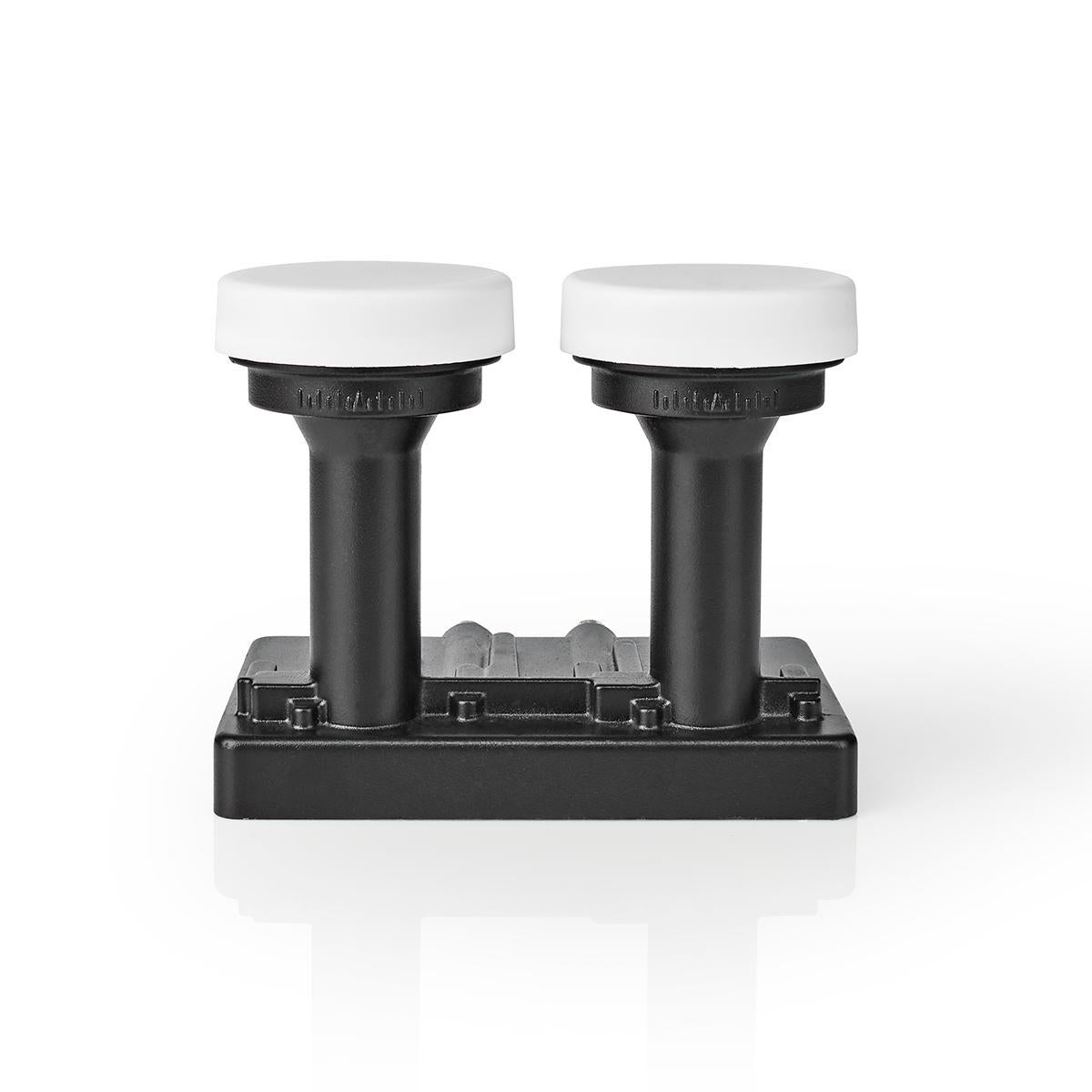

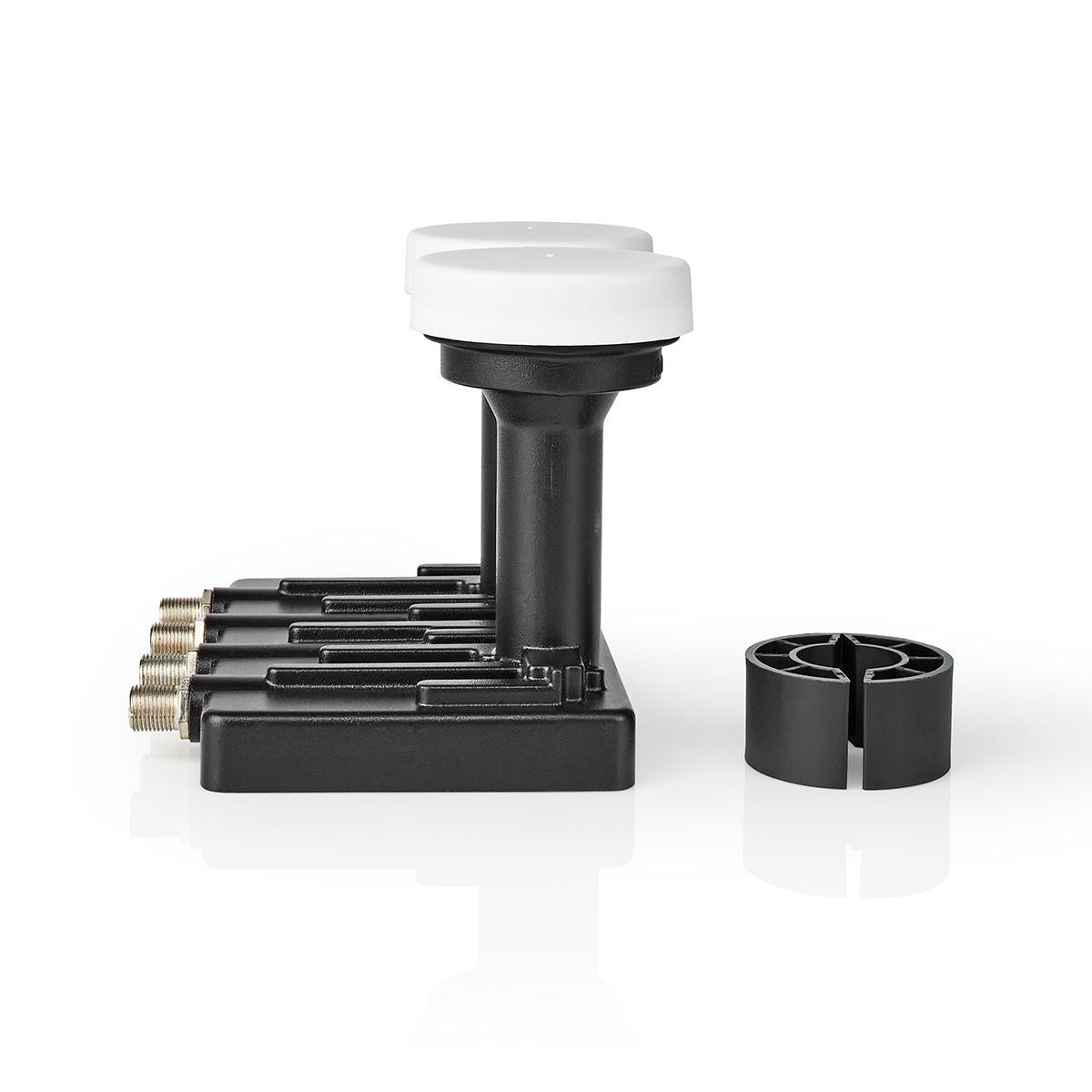

Mount this Nedis LNB quad monoblock 6.0 on installations that require superior signal strength and quality. It reduces the noise figure. The final signal noise figure ranges from 0.2 dB to 0.85 dB.
Connect the quad monoblock to the satellite receivers through a multiswitch.
The monoblock offers signals on 4 levels: vertical high and low band, horizontal high and low band.
It is suitable for connecting 1 satellite receiver to your satellite dish with a diameter of 90 to 120 cm.
Connect the quad monoblock to the satellite receivers through a multiswitch.
The monoblock offers signals on 4 levels: vertical high and low band, horizontal high and low band.
It is suitable for connecting 1 satellite receiver to your satellite dish with a diameter of 90 to 120 cm.
Specifications
Specifications
-
SKUSLNBQDM60BK
-
EAN/GTIN5412810320837
-
Height98 mm
-
Length118 mm
-
Width97 mm
-
Weight289 g
-
ColourBlack
-
Conversion gain52 - 67dB
-
Cross polarization20dB
-
Current consumption0.20A
-
Device power output connection(s)4x F-Connector
-
Gain flatness 26 MHz bandwidth± 1,0dB
-
High band switching22kHz
-
Image rejection (min.)40dB
-
Input frequency range high band11.7 - 12.75GHz
-
Input frequency range low band10.7 - 11.7GHz
-
LNB typeQuad Monoblock 6.0°
-
Local oscillator frequency phase noise-80 dB c/Hz @ 10 kHz (max.)
-
Low band switching0kHz
-
MaterialABS, Metal
-
Noise figure range0.85dB
-
Number of Products in Package1pcs
-
Operating temperature range-35 - 70°C
-
Output connection4x F-Connector
-
Output frequency range high band1.100 - 2.150GHz
-
Output spurious-53dB
-
Polarity switching voltage horizontalDC 16.0 - 20.0 V
-
Polarity switching voltage verticalDC 11.0 - 14.0 V
-
Satellite accessory typeLNB
-
SmartLifeNo
-
Suitable forAstra+, Hotbird, Astra+, Hotbird
