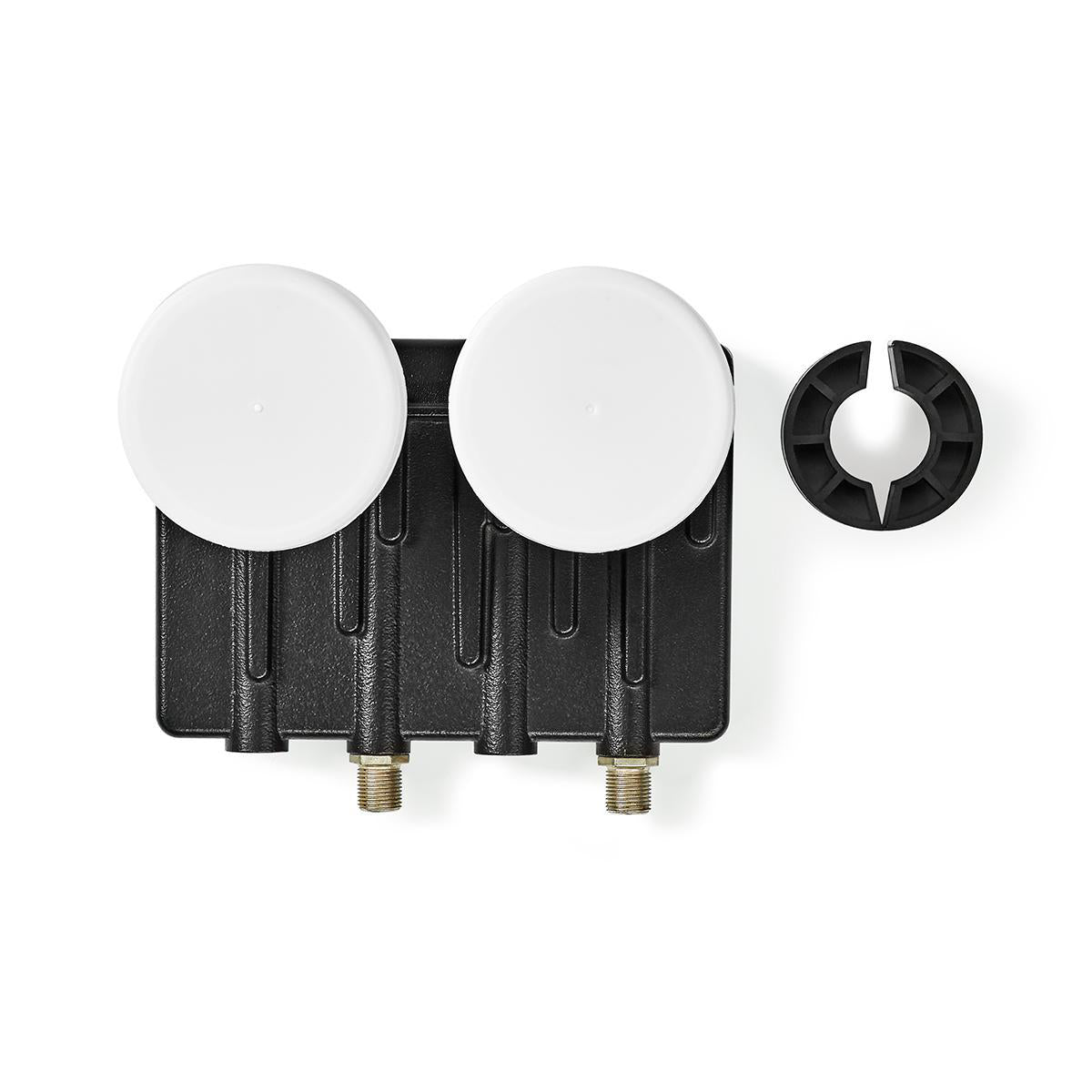

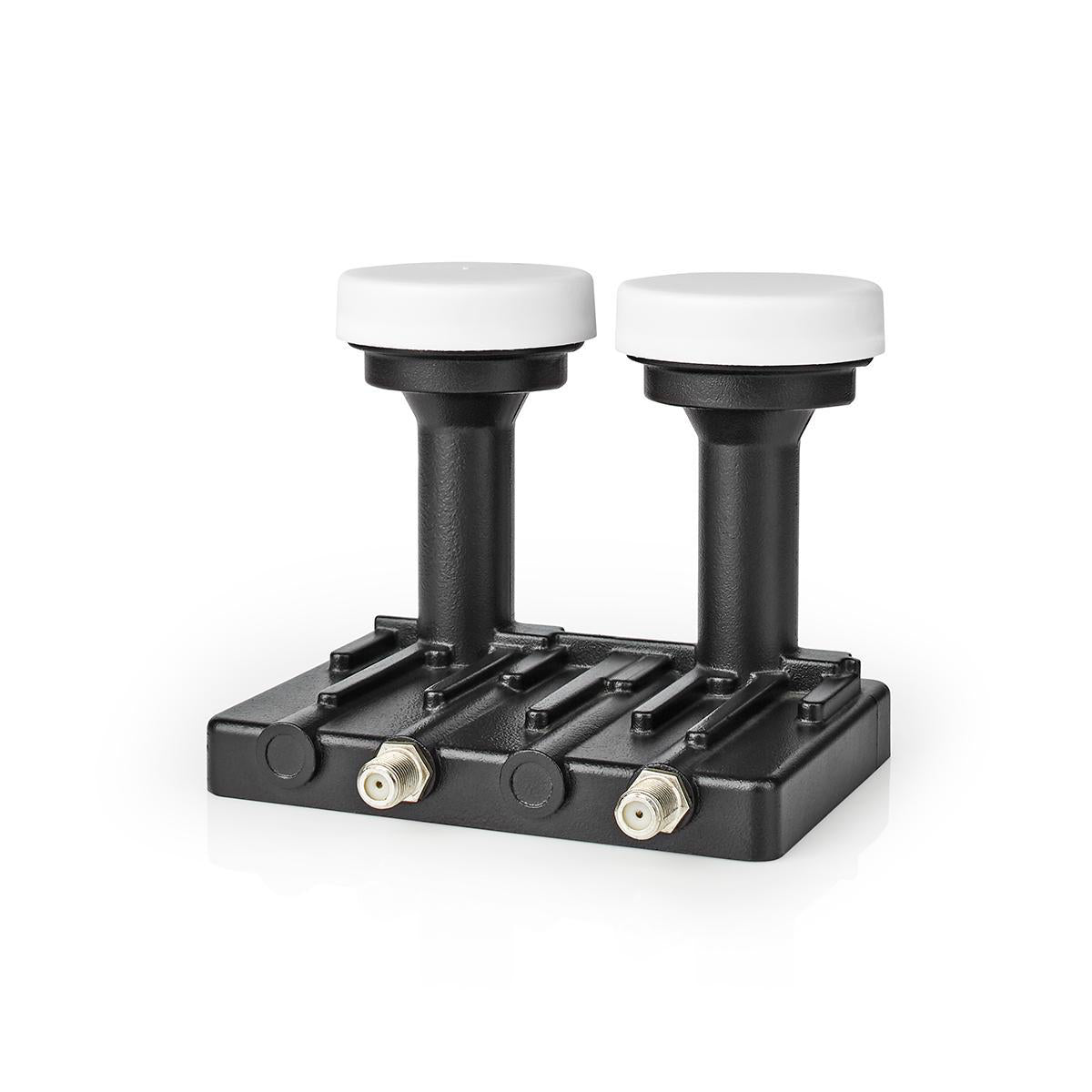

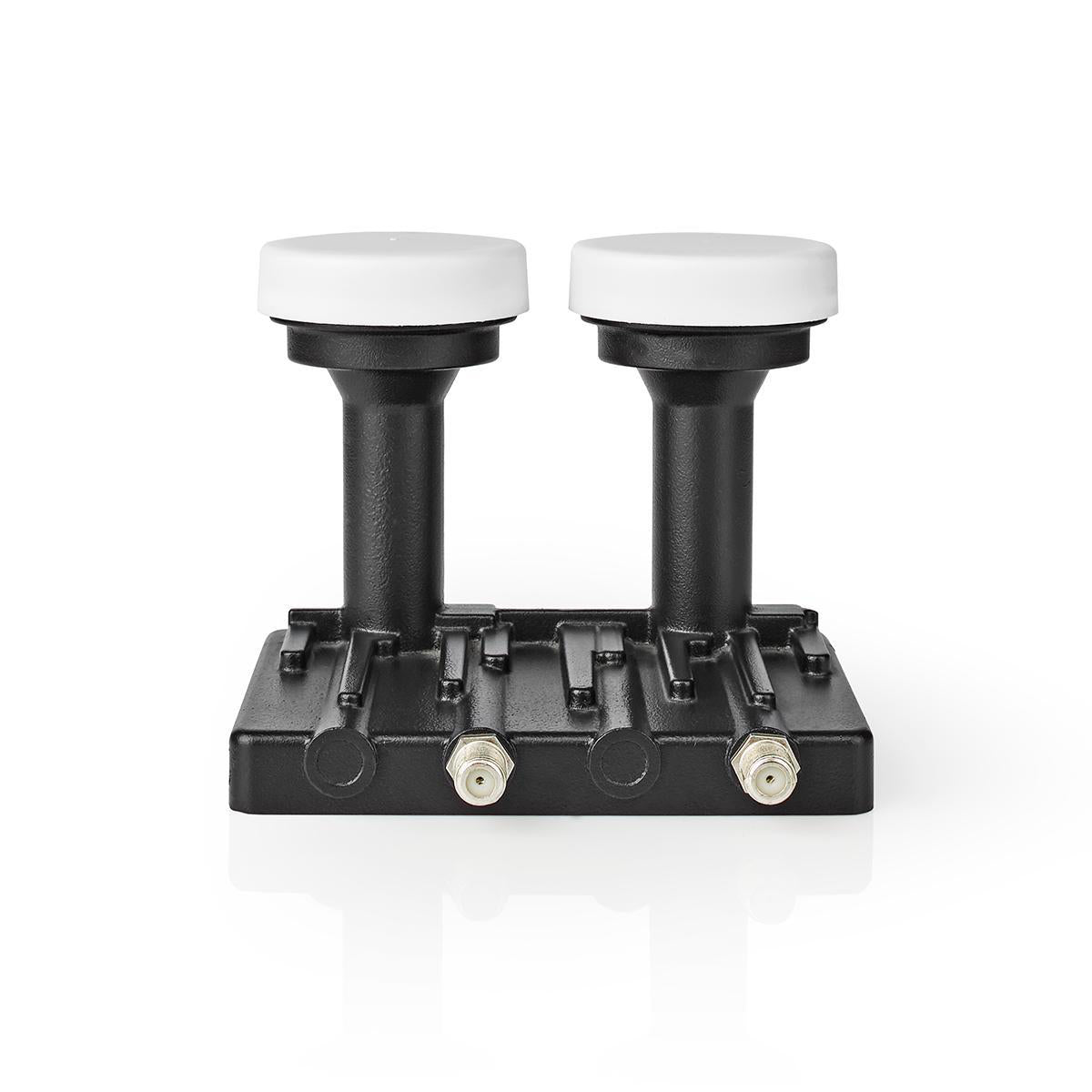

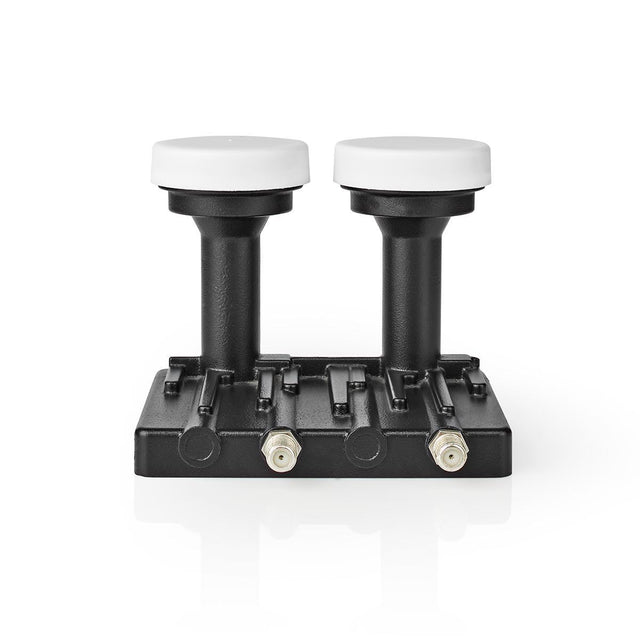

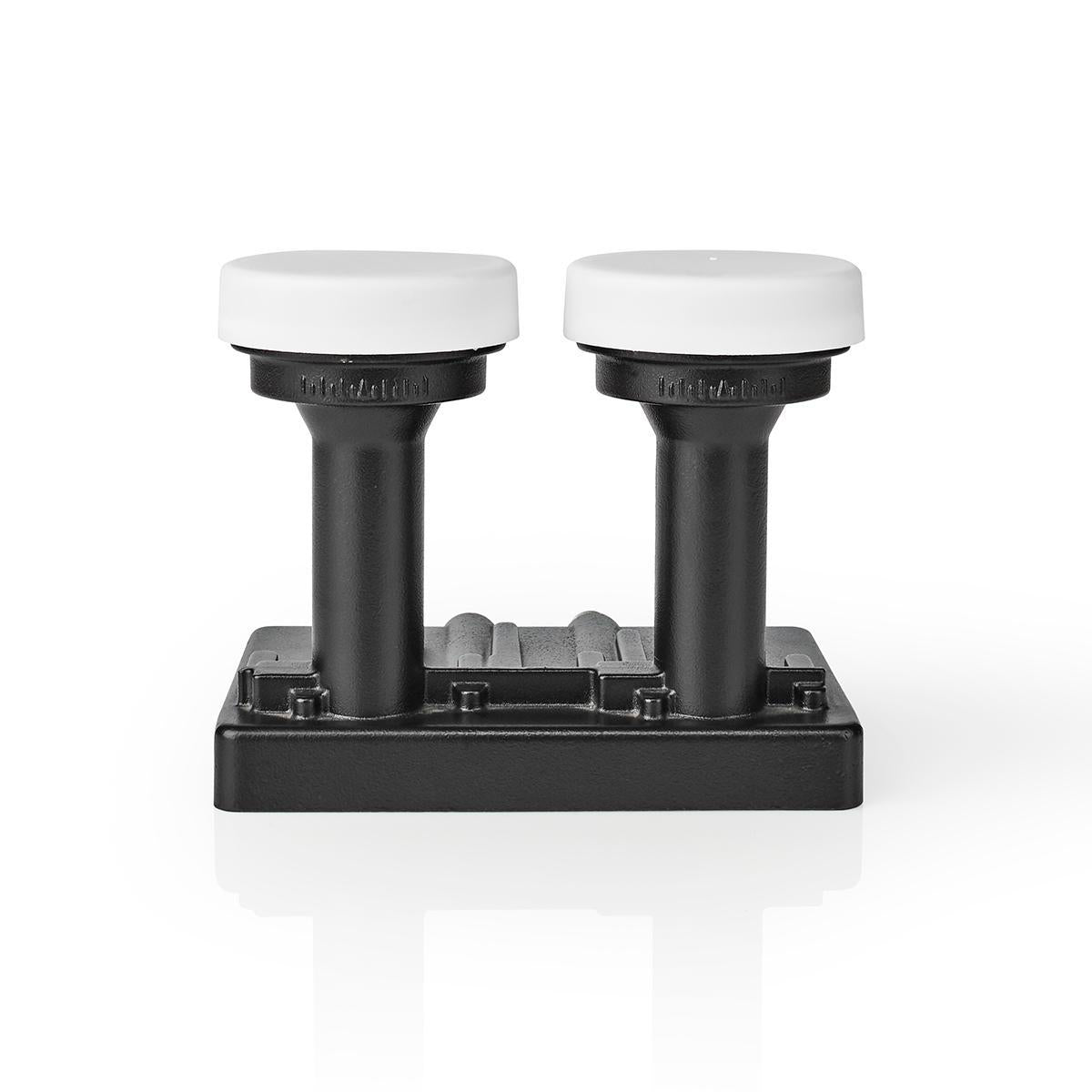

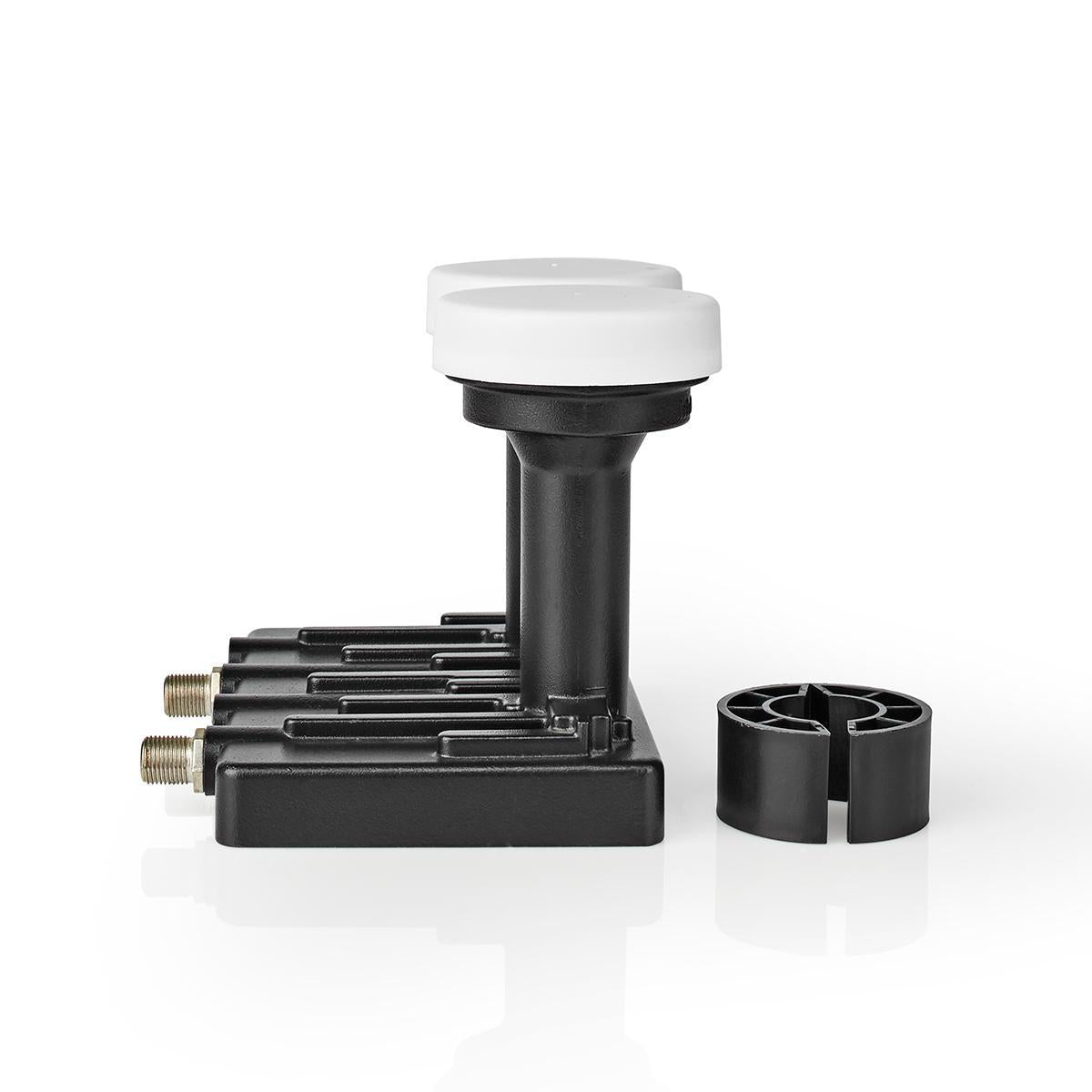

LNB Twin Monoblock 6.0° - Output connection: 2x F-Connector - Noise figure range: 0.85 dB

€31,99

Receives two satellites simultaneously with just one dish. Low noise figure of 0.85 dB for optimal signal strength and image quality. Easy to connect to your installation.

Ordered before 7:30 PM, delivered tomorrow

Kiyoh logo

8.9 score uit 175+ klantbeoordelingen!

Free shipping from €30

Description

Mount this Nedis LNB twin monoblock 6.0 on installations that require superior signal strength and quality. It reduces the noise figure, ranging from 0.2 dB to 0.85 dB.

Connect the twin monoblock to the satellite receivers through a multiswitch.
The monoblock offers signals on 4 levels: vertical high and low band, horizontal high and low band.

It is suitable for connecting 1 satellite receiver to your satellite dish with a diameter of 90 to 120 cm.

Specifications

  • Height
    98 mm
  • Length
    118 mm
  • Width
    97 mm
  • Weight
    283 g
  • Colour
    Black
  • Conversion gain
    52 - 67dB
  • Cross polarization
    20dB
  • Current consumption
    0.17A
  • Gain flatness 26 MHz bandwidth
    ± 0,5dB
  • High band switching
    22kHz
  • Image rejection (min.)
    40dB
  • Input frequency range high band
    11.7 - 12.75GHz
  • Input frequency range low band
    10.7 - 11.7GHz
  • LNB type
    Twin Monoblock 6.0°
  • Local oscillator frequency phase noise
    -80 dB c/Hz @ 10 kHz (max.)
  • Low band switching
    0kHz
  • Material
    ABS, Metal
  • Noise figure range
    0.85dB
  • Number of Products in Package
    1pcs
  • Operating temperature range
    -35 - 70°C
  • Output connection
    2x F-Connector
  • Output frequency range high band
    1100 - 2150GHz
  • Output spurious
    -53dB
  • Polarity switching voltage horizontal
    DC 16.0 - 20.0 V
  • Polarity switching voltage vertical
    DC 11.0 - 14.0 V
  • Satellite accessory type
    LNB
  • SmartLife
    No
  • Suitable for
    Astra+, Hotbird
