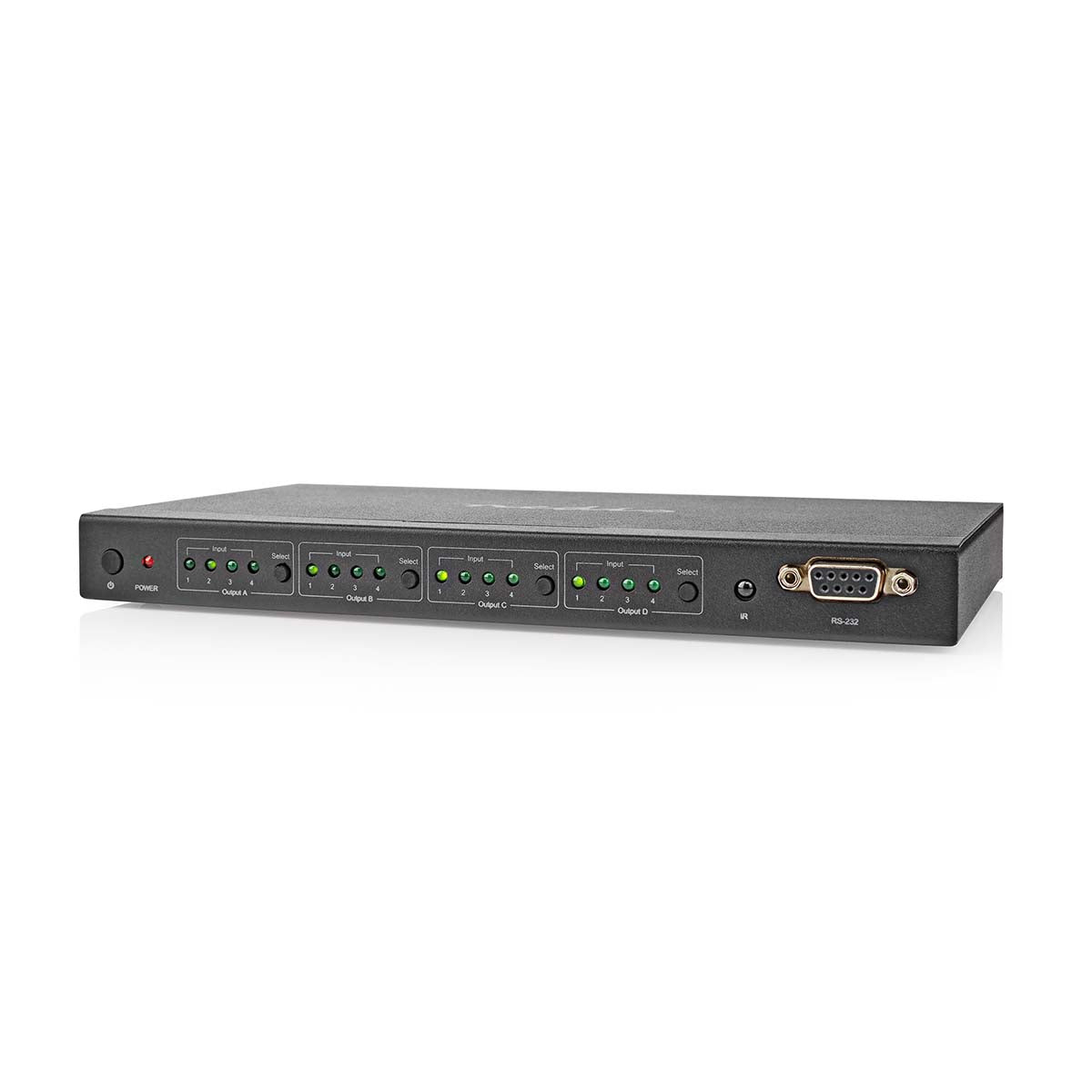

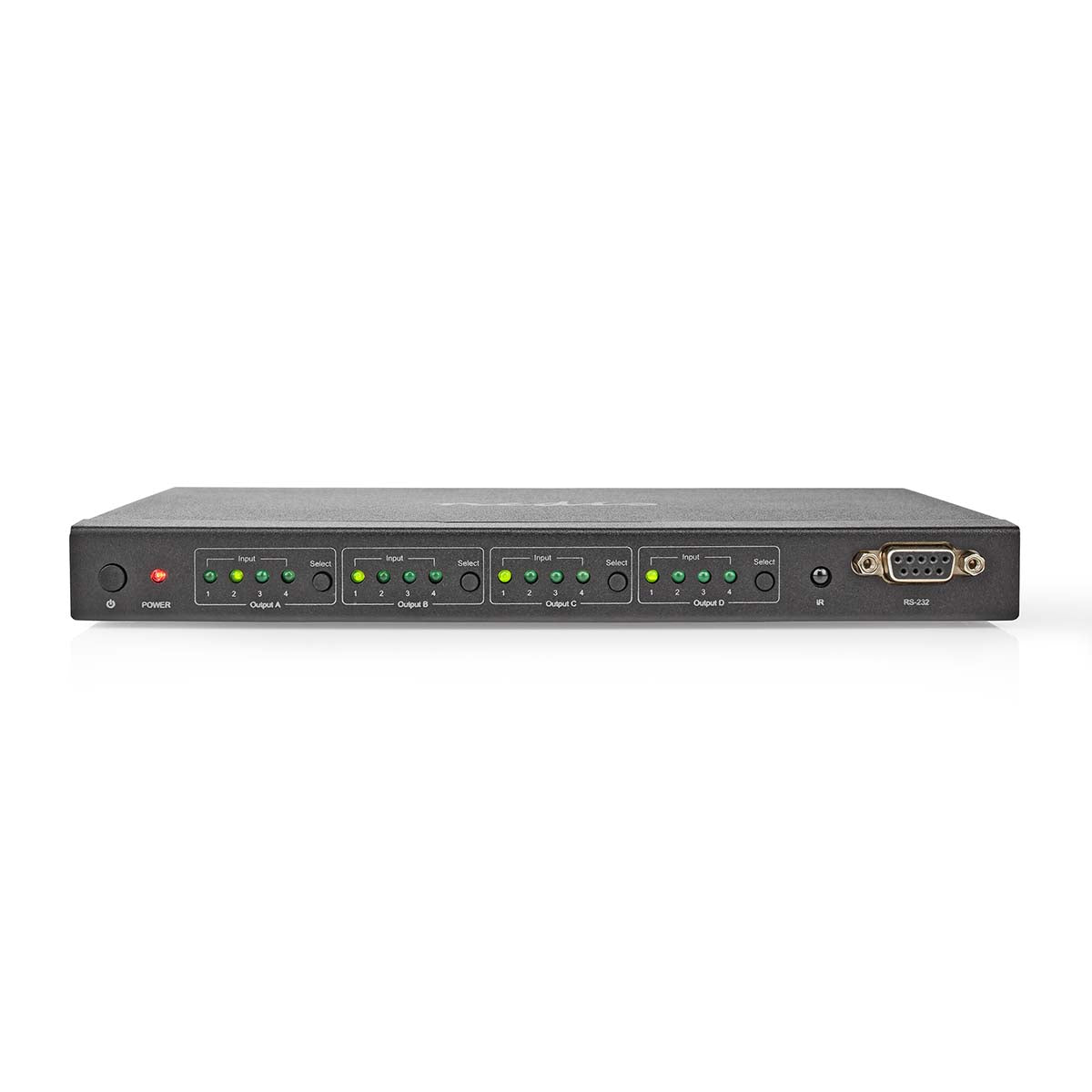

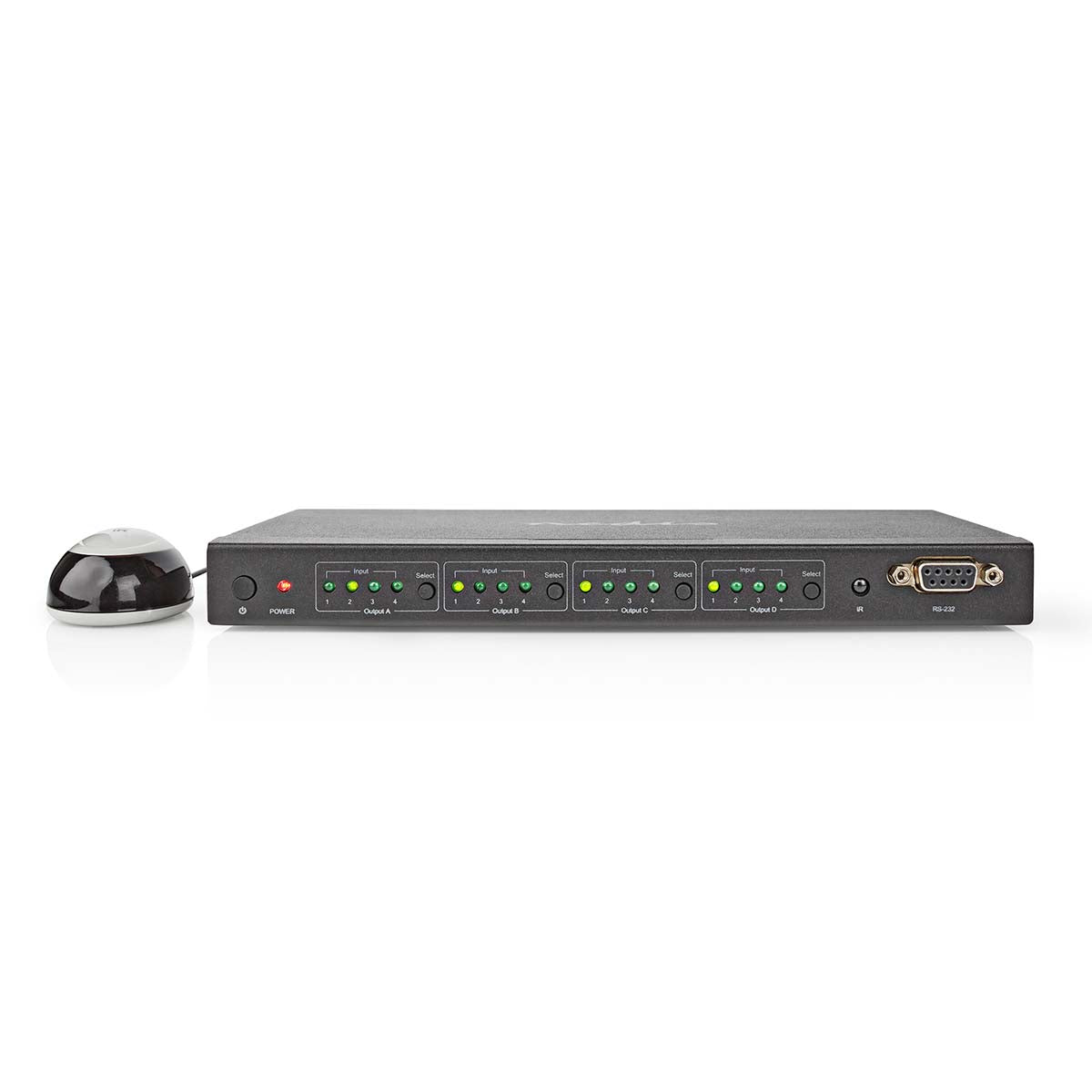

HDMI™ Matrix Switch 4 x 4 port(s) - DC Power / 1x RS232 / 4x HDMI™ Input - 4x HDMI™ Output

€369,99

Connect 4 HDMI sources to 4 screens and switch independently. Ideal for gaming, presentations, and multimedia systems. Easy to operate via RS232 or remote control.

Ordered before 7:30 PM, delivered tomorrow

Kiyoh logo

8.9 score uit 170+ klantbeoordelingen!

Free shipping from €30

Description

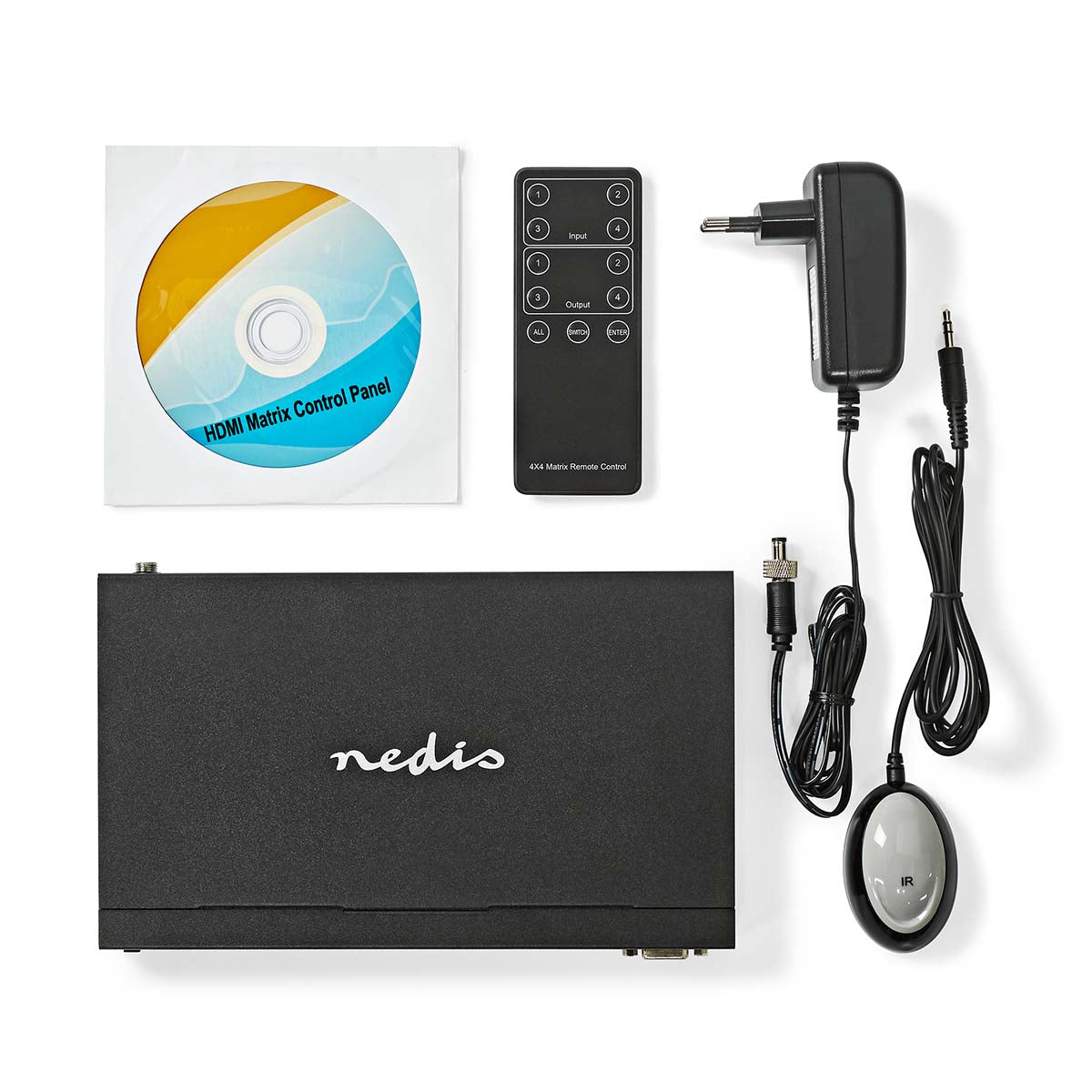

This HDMI™ Matrix can connect 4 sources, such as a game console or multimedia player, via HDMI™ to 4 screens. The matrix switch enables you to play 4 source devices on 4 screens independently.

Specifications

  • Height
    140 mm
  • Length
    220 mm
  • Width
    20 mm
  • Weight
    807 g
  • Bandwidth
    18000mHz
  • Clock frequency
    18000MHz
  • Colour
    Black
  • Colour formats
    YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0, RGB

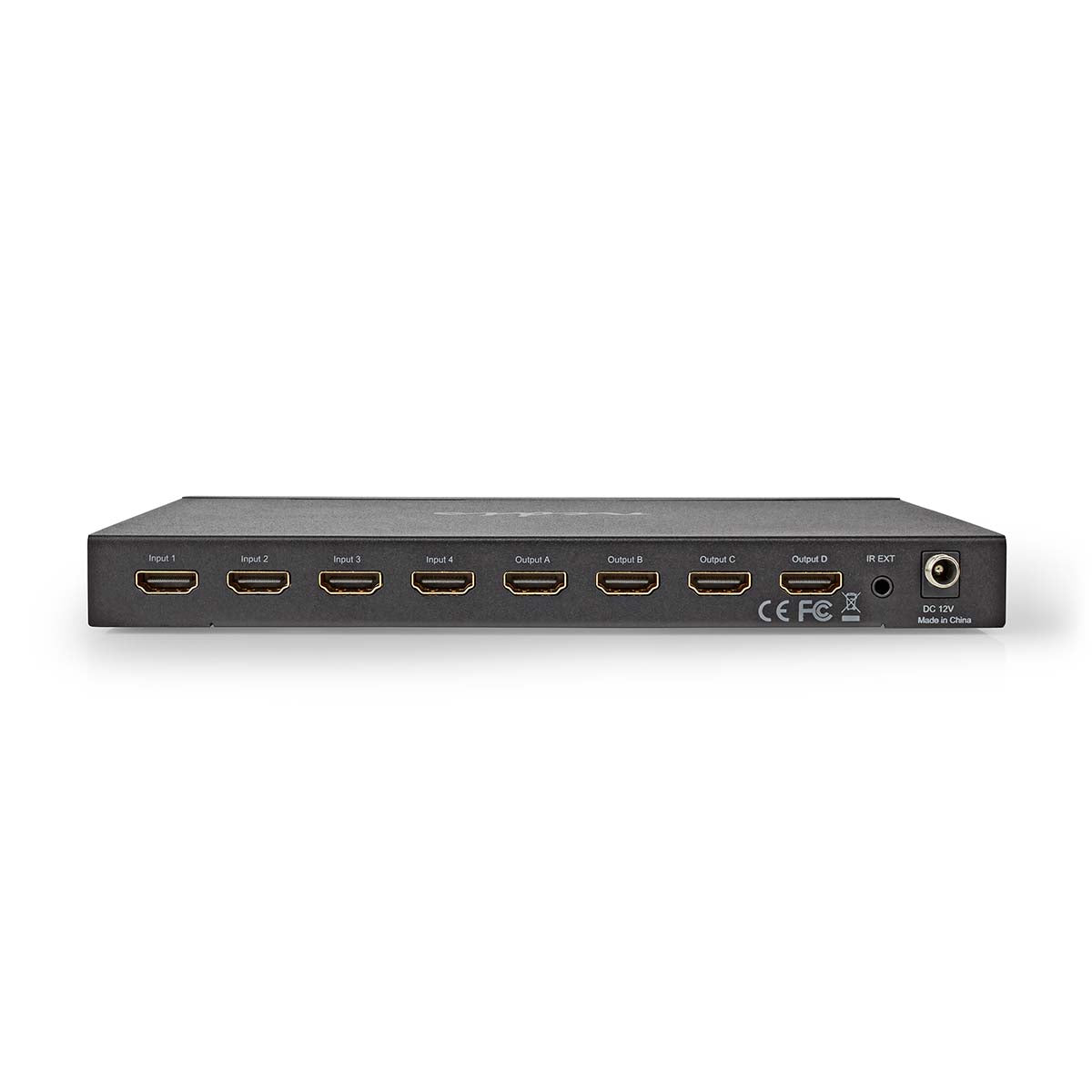

  • Connection input
    4x HDMI™ Input, DC Power, 1x RS232
  • Connection output
    4x HDMI™ Output

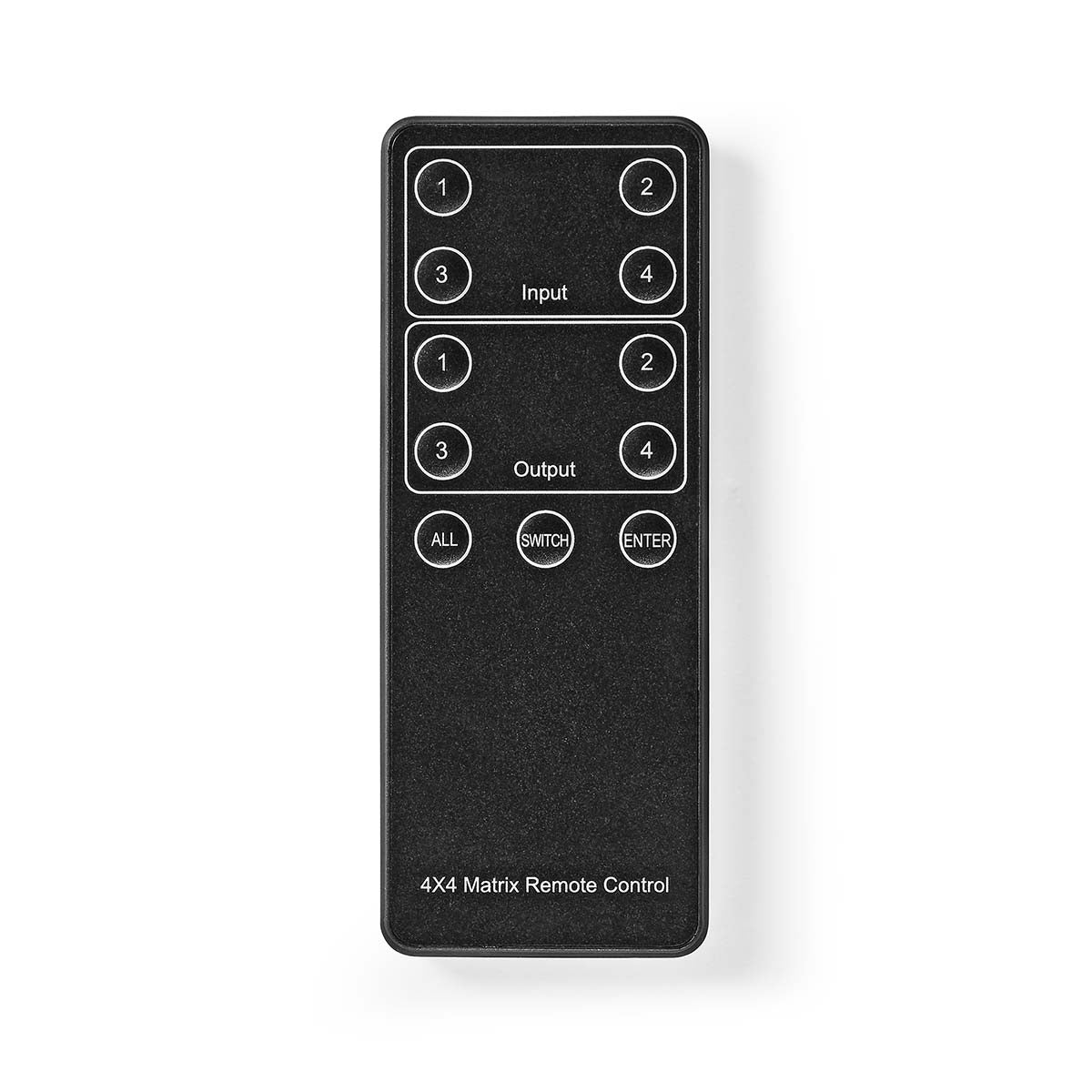

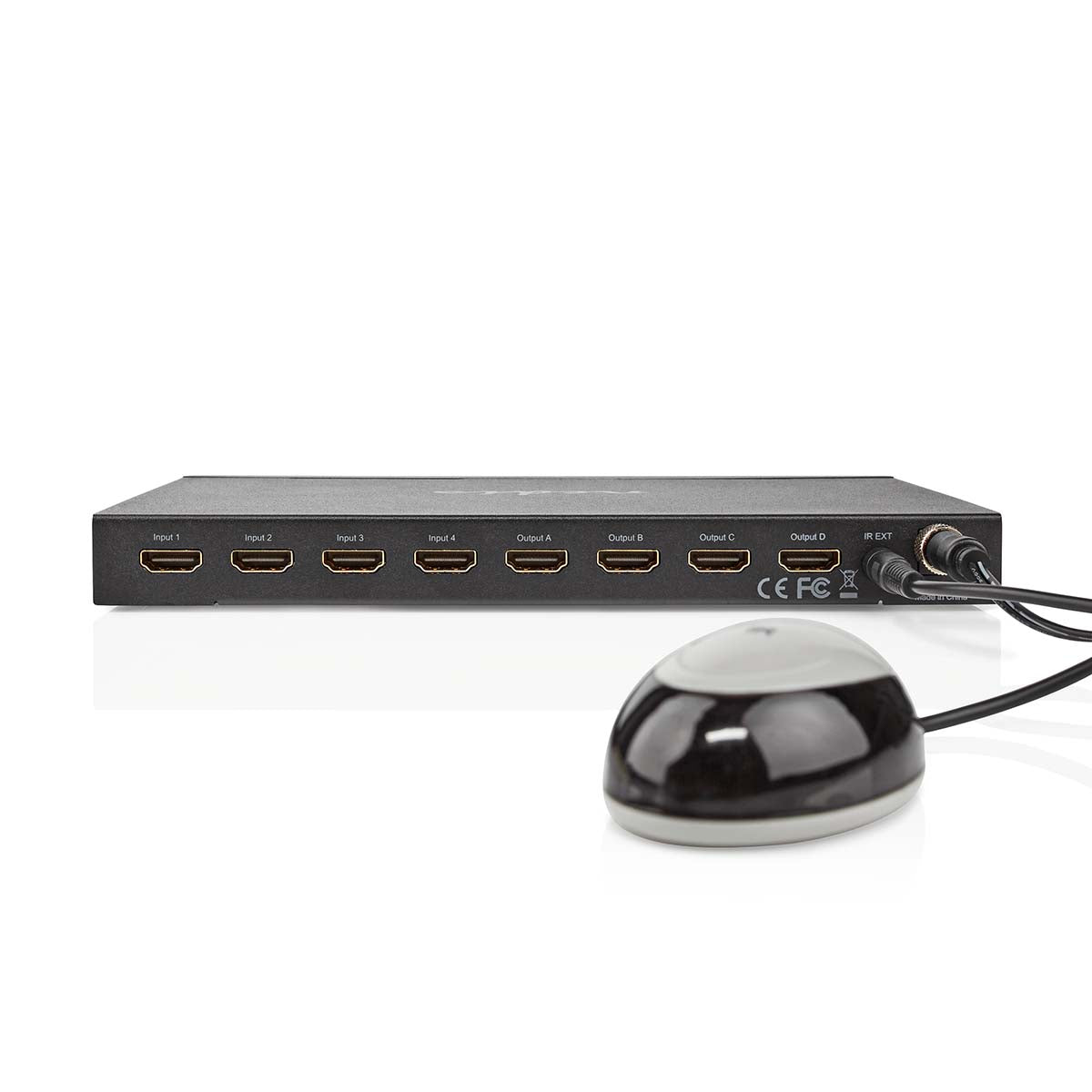

  • Controlling method
    Remote Control, RS232
  • Data rate
    18Gbps
  • Device power input connection(s)
    DC
  • Device type
    HDMI™ Matrix Switch
  • EDID settings
    Auto
  • HDCP version
    HDCP 2.2 Compatible
  • Input current
    1.0A
  • Input voltage
    12 V DC
  • Material
    Metal
  • Maximum bandwith
    18Gbps
  • Maximum resolution
    4K@60Hz
  • Number of Products in Package
    1pcs
  • Operating temperature range
    0 - 45°C
  • Ports
    4 x 4port(s)
  • Power cable side A
    DC
  • Power cable side B
    Euro
  • Power consumption in operating mode
    12W
  • Power plug
    Euro
  • Power source type
    Mains Powered
  • Remote controlled
    Yes
  • SmartLife
    No
  • Storage temperature
    80°C
  • Supported resolutions
    4K@60Hz, 4K@30Hz, 1080p, 720p
  • Supported technology
    HDCP
