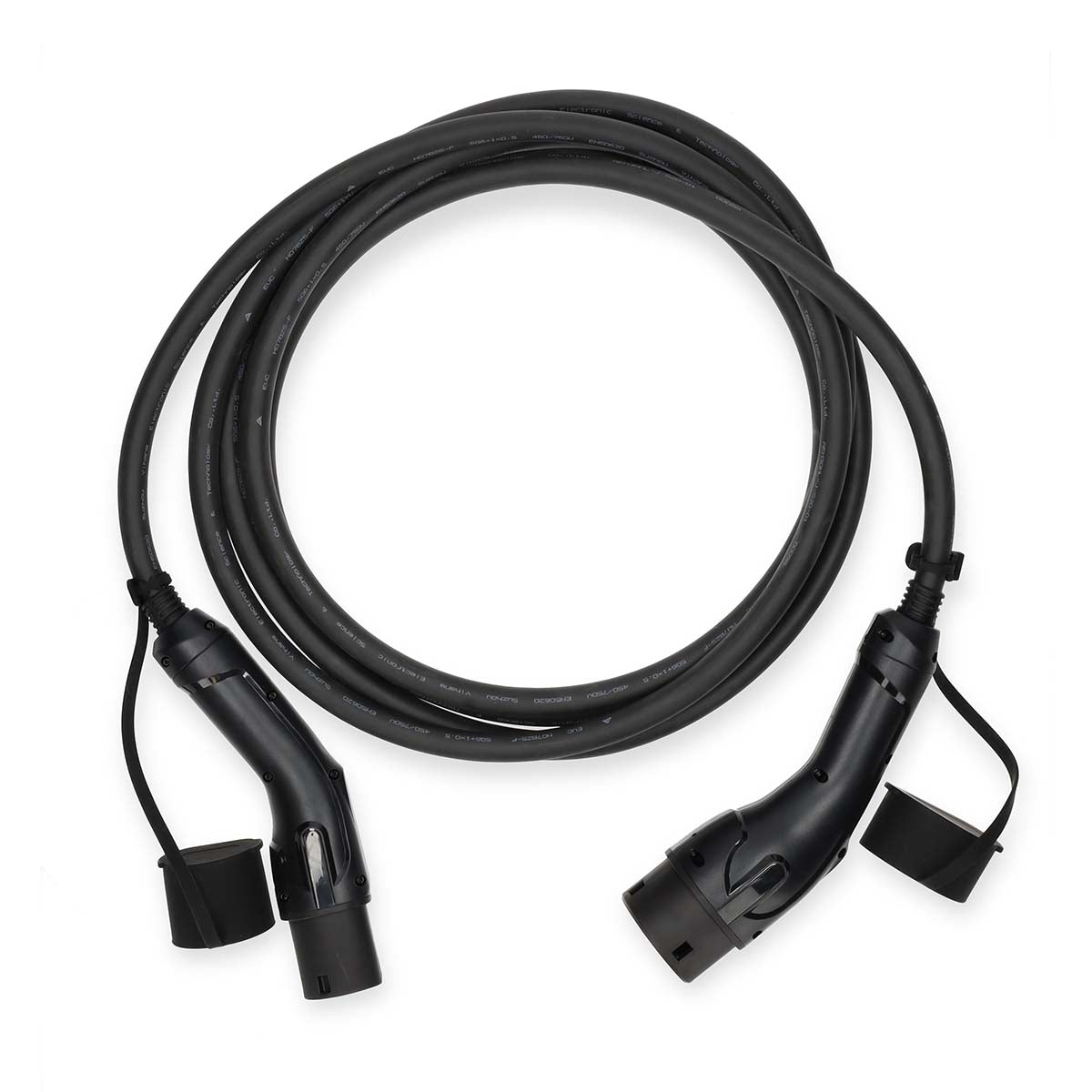

Electric Vehicle Cable Cable Type 2 - 32.0A - 22000W

Regular price €189,99

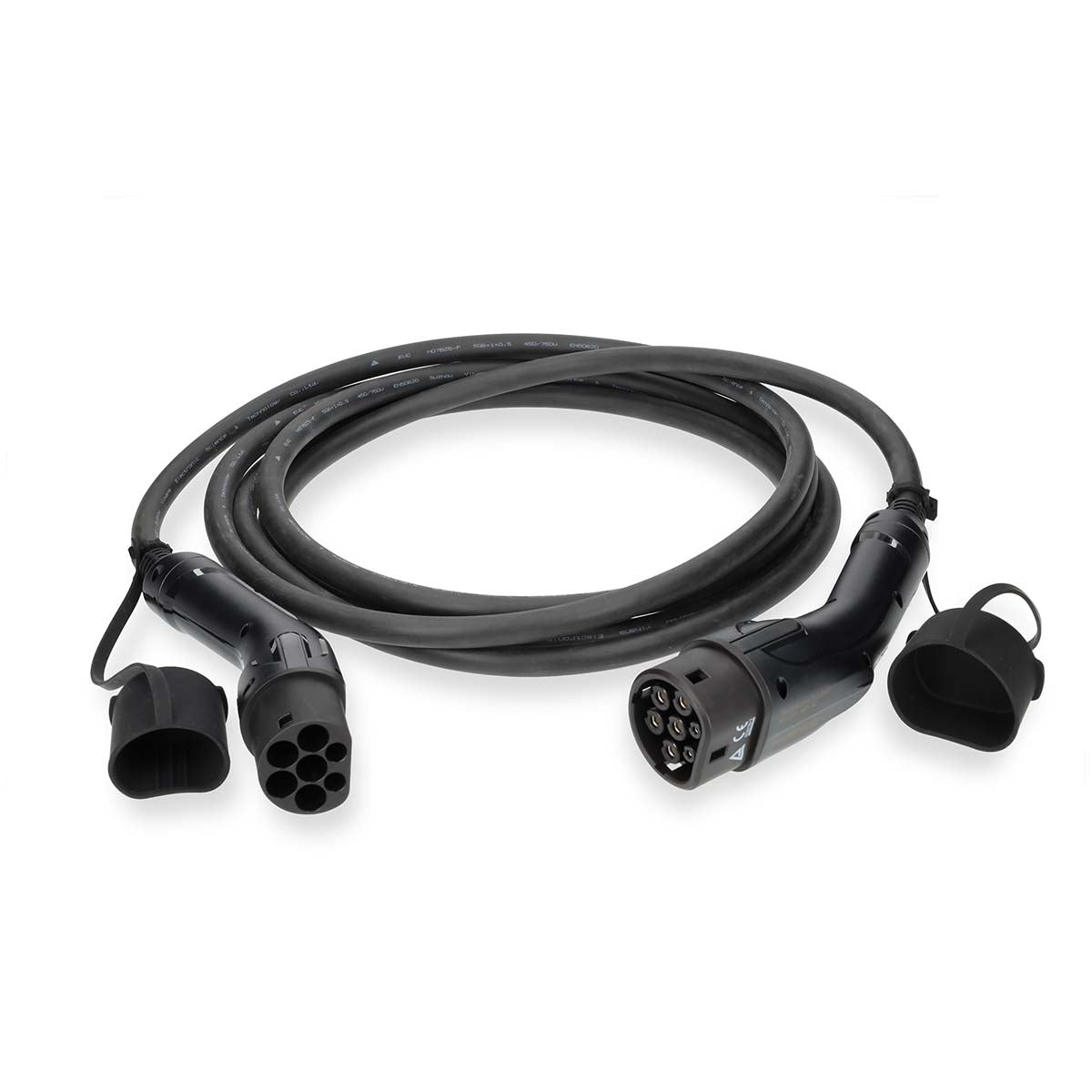

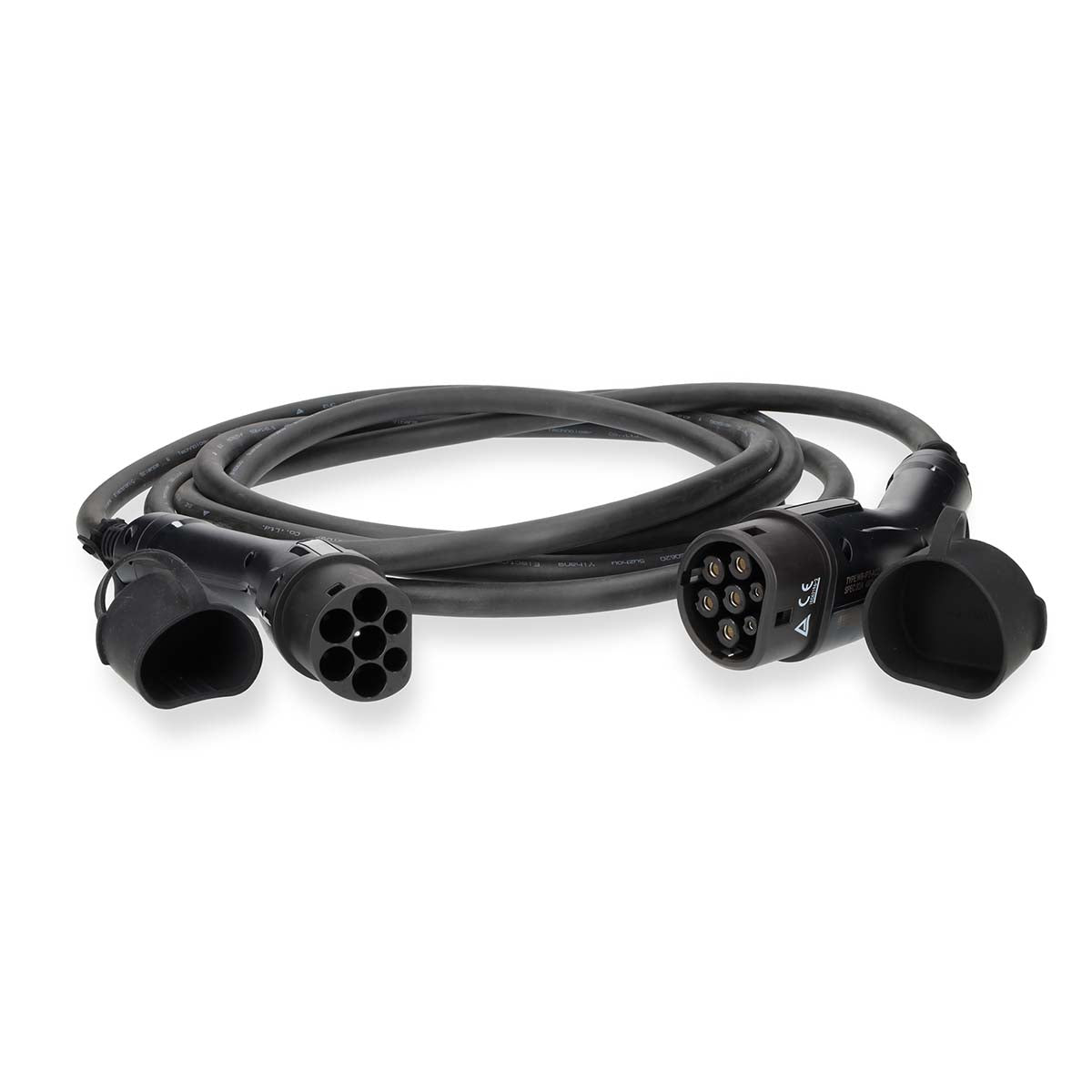

Charge your electric car anywhere with this 5m Type 2 cable. 22kW fast charging, IP55 waterproof, extremely weather resistant, and complete with a carrying bag. Safe and reliable charging at home or on the go.


American Express Maestro Mastercard Visa iDEAL Wero Bancontact Klarna PayPal Apple Pay Google Pay

Description

This EV charging cable is designed for safe, efficient and convenient charging of your electric vehicle at home or on the go. With support for charging up to 22 kW (32 A), it ensures fast and stable power delivery and is fully compatible with 11 kW, 7.4 kW and 3.7 kW charging systems, making it suitable for a wide range of electric cars and plug-in hybrids.

With a cable length of 5 metres, it offers extended reach and flexibility in various charging situations. Whether you are charging at home, at work or at a public charging point, the cable provides added convenience without compromising on performance.

The cable features a flexible TPU jacket, allowing for easy handling and hassle-free storage. Its robust yet flexible design ensures that it remains practical and durable in everyday use.

Safety and reliability are key. This EV charging cable is fully compliant with all mandatory European (EN) standards, ensuring safe and consistent operation. The integrated rubber protection caps help keep the connectors clean and protected from water and dust when not in use.

Built with high-quality copper conductors, the cable guarantees optimal conductivity and consistent charging performance. Its durable construction supports over 10,000 insertion cycles, making it a reliable solution for intensive and long-term use.

Thanks to its IP55 rating, the cable is resistant to water and moisture and can be used in various weather conditions. It operates reliably in temperatures ranging from -35°C to +50°C, making it suitable for both indoor and outdoor environments.

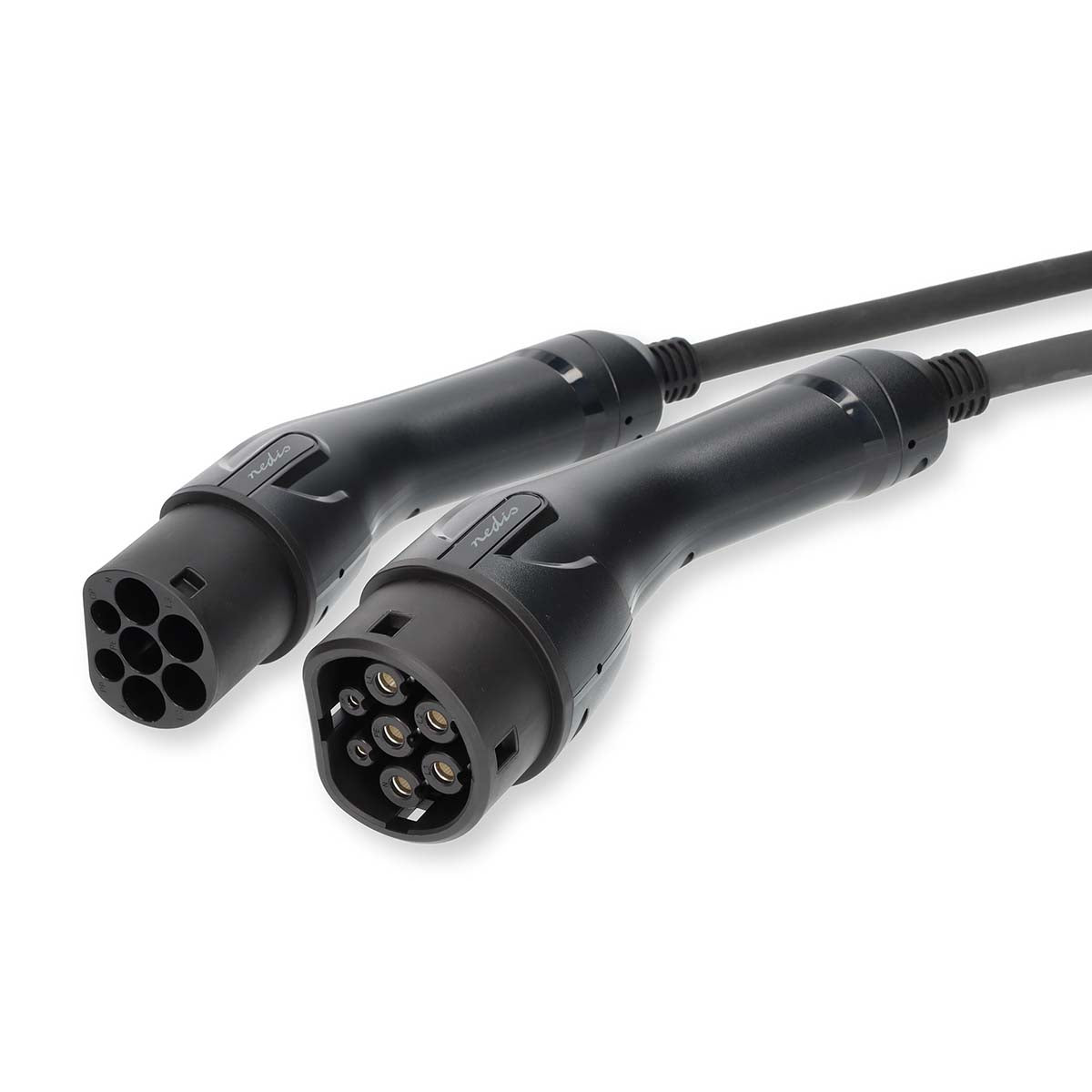

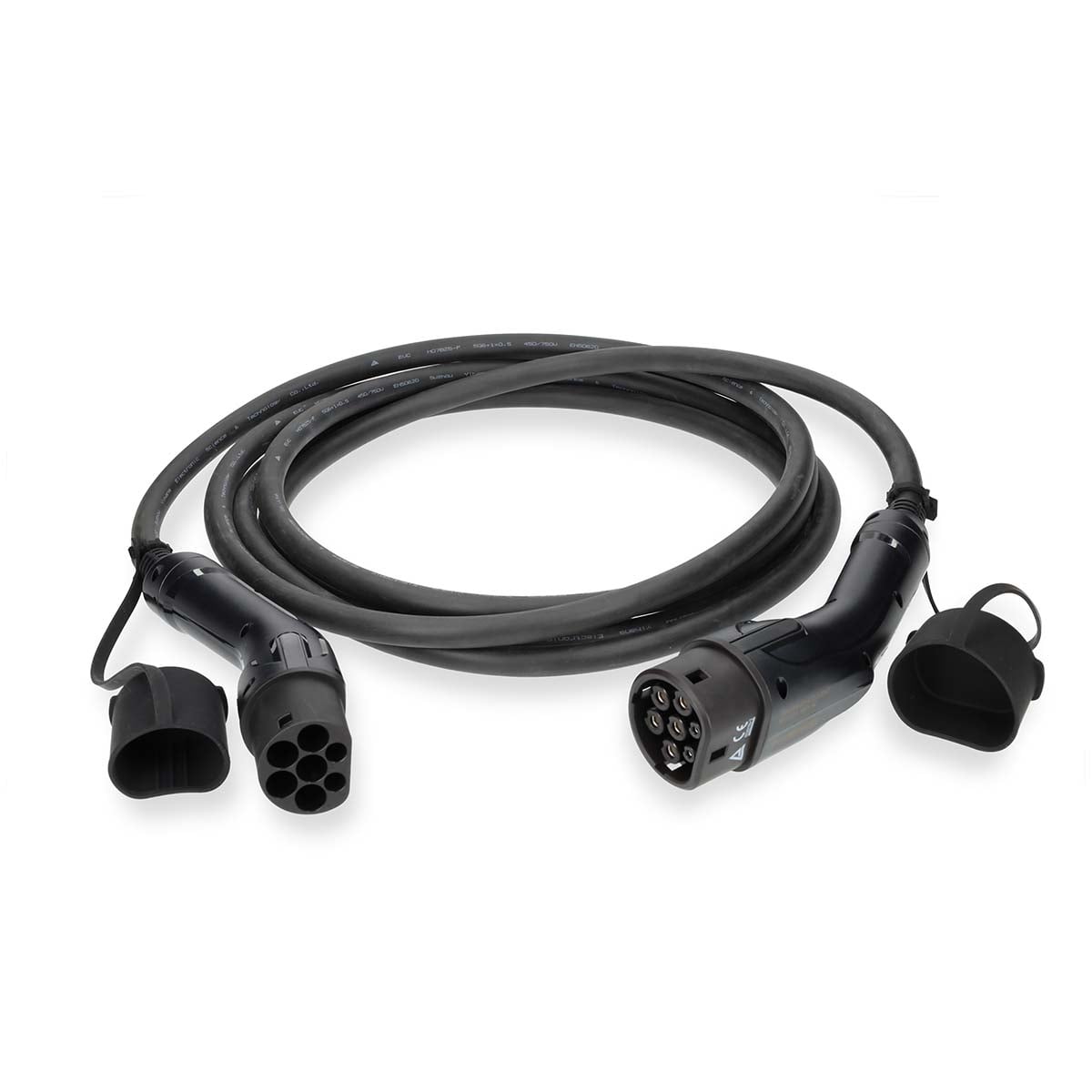

The ergonomic moulded connectors are designed for a comfortable grip and smooth connection to both the vehicle and charging station, ensuring a user-friendly experience every time.

Specifications

  • SKU
    EVCA22KWBK50
  • EAN/GTIN
    5412810450954
  • Height
    64 mm
  • Length
    68 mm
  • Width
    5000 mm
  • Weight
    3345 g
  • Cable mantle material
    TPE
  • Cable mantle size
    6mm
  • Cable type
    Cable Type 2
  • Colour
    Black
  • Conductor diameter
    5 x 2.55 mm²
  • Conductor material
    Bare Copper
  • Connector design - side A
    Straight
  • Connector design - side B
    Straight
  • Connector material
    ABS
  • Contact resistance
    0.5mΩ
  • Input voltage
    400 V AC
  • Insertion life cycle
    10000
  • Insulation resistance
    1000MΩ
  • IP rating
    IP55
  • Material
    TPU
  • Number of phases
    3-Phases
  • Number of Products in Package
    1pcs
  • Operating temperature range
    0 - 30°C
  • Output current
    32.0A
  • Packaging
    Gift Box
  • Power
    22000W
  • Power cable length
    5.00m
  • Power cable side A
    EN62199-2 Type 2
  • Power cable side B
    EN62199-2 Type 2
  • Power plug
    EN62199-2 Type 2
  • Resistor coding
    220Ohm
  • SmartLife
    No
  • Terminal temperature rise
    223°C
  • Withstand voltage
    2000V
  • Working humidity
    5 % - 95% non condensed%
